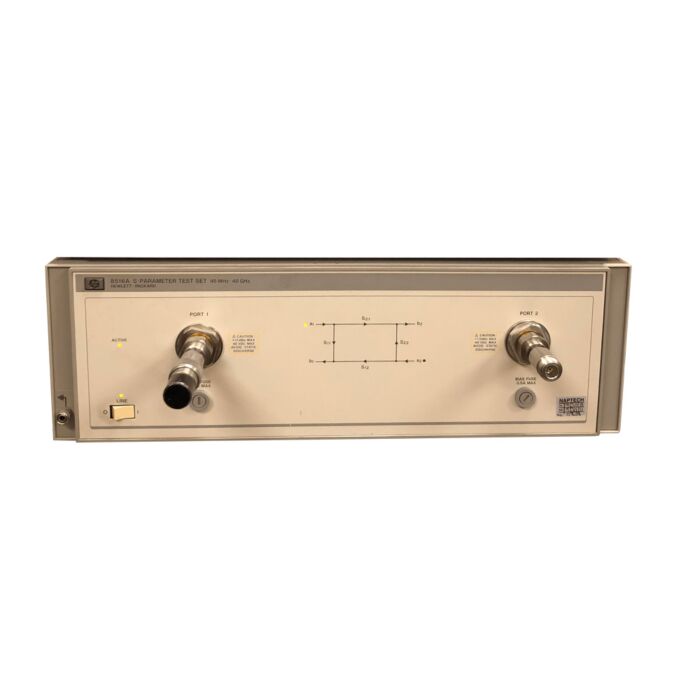

Keysight 8516A for Rent, S-Parameter Test Set, 45 MHz to 40 GHz

Keysight 8516A Highlights

The 8516A S-Parameter test set is available for the 8510 series network analyzer for broadband coaxial measurements from 45 MHz to 40 GHz. The 8516A test set has an architecture that develops a separate reference channel for each incident port. RF switching is done with a built-in electronic switch. For active device measurements, the test set includes the ability to apply DC bias (external) to the test port center conductors.

• H06=adds 60dB step atten, in 10dB steps
• K04=moves port2 atten ahead of B2 sampler & adds 3dB pad between switch splitter & port2 coupler
• K11=stand. couplers replaced with high-performance couplers
