Keysight Technologies 41952B FOR RENT

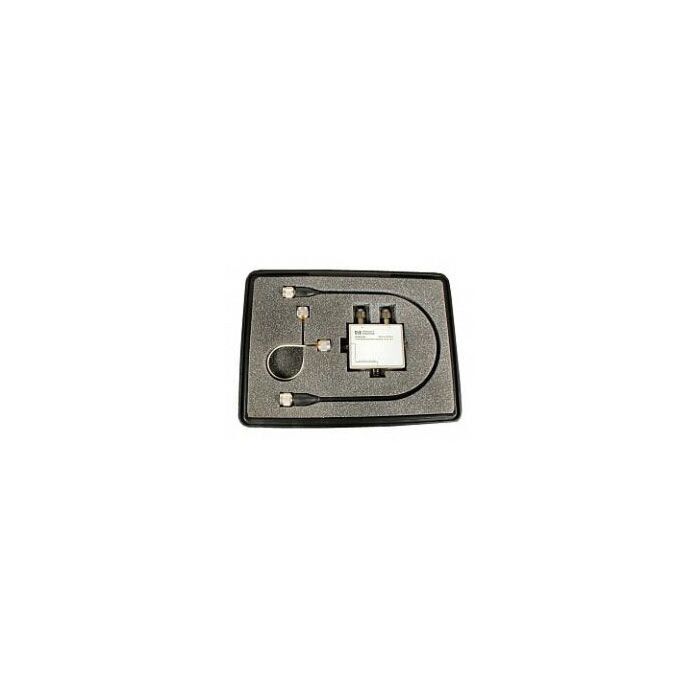

Keysight 41952B for Rent, Tranmission/Reflection Test Set, 100kHz to 500MHz, 75 Ohm

Order # 41952B-RENT2

Mfg # 41952B

call-regular 800-828-1470
$0.00
  • Overview

Keysight 41952B for Rent, Tranmission/Reflection Test Set, 100kHz to 500MHz, 75 Ohm

Order # 41952B-RENT2 | Mfg # 41952B

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Keysight 41952B Highlights

The Keysight 41952B Transmission / Reflection Test Setallows the 4195A to perform full S-Parameter measurement without having to remove and reverse the device. the HP 41952B is used for 50 ohm applications.

  • Impedance 75 ohm
  • Frequency Range: 100 kHz to 500 MHz
  • Directivity: 35 dB @ 800 kHz to 200 MHz
  • Transmission Magnitude Phase (@ = 300 kHz): ± 1 dB, ± 5 deg
  • Reflection Magnitude Phase (@ = 1 MHz): ± 1 dB, ± 5 deg
  • Effective Source Match at Test Port: >20 dB @ = 300 kHz 75 Ohm type N(f)
  • For the 4195A, 40dB @300kHz to 200MHz Directivity, ±1dB ±5deg Tranmission and Reflection Magnitude, Type N female 75 Ohm test port connector
