Yokogawa 700929 For Rent

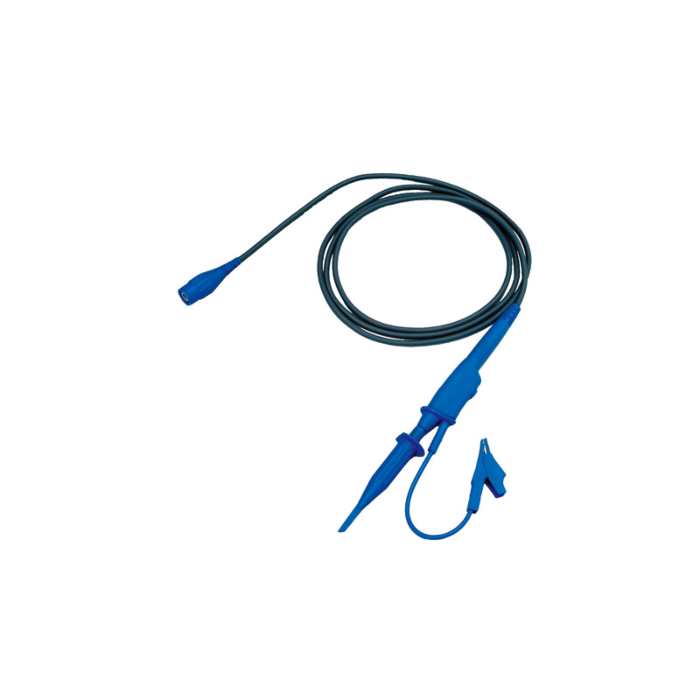

Yokogawa 700929 for Rent, 250MHz Isolated Passive Probe, 10:1 Attenuation, 10MOhm

Order # 700929-RENT2

Mfg # 700929

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources
  • Specifications

Yokogawa 700929 for Rent, 250MHz Isolated Passive Probe, 10:1 Attenuation, 10MOhm

Order # 700929-RENT2 | Mfg # 700929

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview


Passive Probe, 1000Vp CAT2, 100MHz, 10:1, 10MΩ, 1.5m, Isolated Probe, Safety Iso-Probe.

For use with

  • DL850 series
  • DL750/DL750P
  • SL1400
  • SL1000

For use with

  • 701250
  • 701251
  • 701260
  • 701280
  • 701281
  • 720210 isolated-input modules ONLY.

Technical Resources

Yokogawa Probes & Accessories for Oscilloscopes & ScopeCorders Datasheet

Specifications

Bandwidth: DC to 100MHz (-3dB) Attenuation ratio: 10:1 Connector Type: BNC Input Resistance: 10MΩ Input Capacitance: 18pF Compensation Range: Rise Time: 1.4ns Maximum input voltage: 1,000V (DC + ACpeak) (subject to specification of the module), derate above 500kHz. Common-Mode Input Voltage: Limited to the specification of the Module used with this probe. Cable length: 1.5m Standard accessories included: B9940WX Safety Plug-On Clip (pincher), and Safety Clip Lead (B9940WX) Safety Rating (Probe Alone): EN61010-031:2002, CAT III
