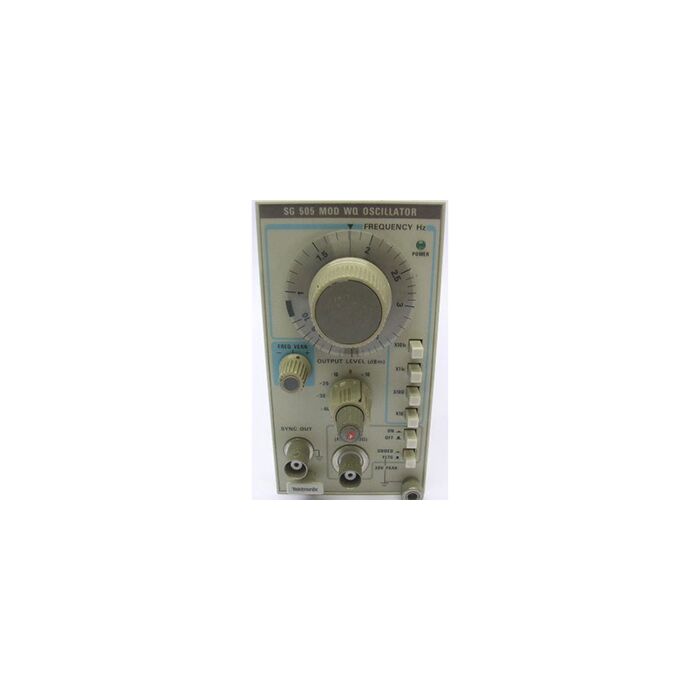

Tektronix SG 505 for Rent, Oscillator, 10 Hz to 100 Khz Plug-in
Order #SG 505-RENT2|Mfg #SG 505
For Rent
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Have a Question?
Speak to a Transcat Rental Expert at 800.264.4059
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Tektronix SG 505 Highlights
This unit is used in testing audio equipment
Coupled with the AA501A Distortion Analyzer you have a complete audio equipment test set
The IM test signal option consists of a buffer amplifier that, when the IM button is pressed, patches in an external signal from the backplane of the mainframe
The model WR is a specially modified "Option 02" SG505 that accepts an external IM signal instead of generating it internally
Originally it was intended to accept an adjustable frequency IM signal from an SG505-WQ plugged in next to it in a TM504A mainframe
This allowed the IM frequency to be adjusted instead of having the fixed 60 or 250Hz signal of the "Option 02" version
It is not necessary to have the WQ or to patch in any external signal to use the WR UNLESS you wish to use the IM function, in which case an external signal will be required. It is also possible, with some skill, to modify this unit back to the "Option 02" configuration
10-Hz to 100-kHz Sine Wave Output
Ultra-Low Distortion:
Floating or Grounded Output600 Ohm Source Impedance
Vernier Frequency Control
Fully Balanced Outout to +28 dBm (SG505 Option 02)
