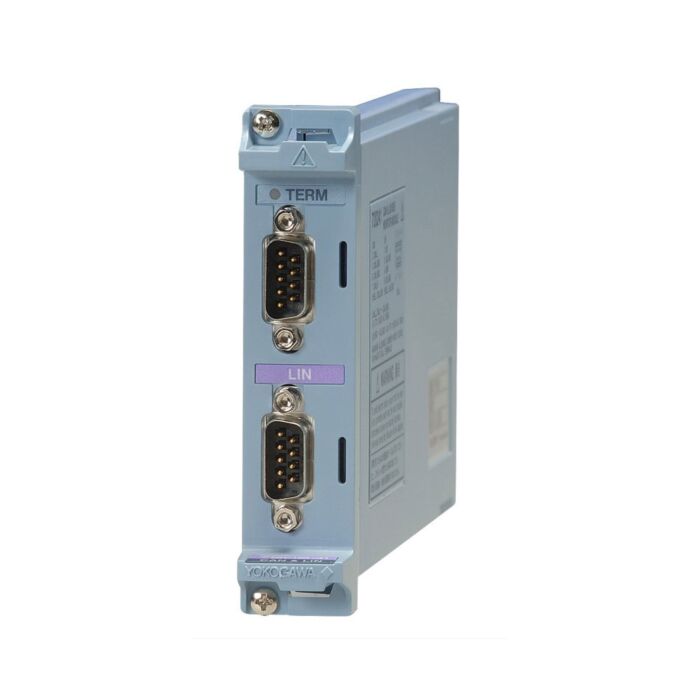

Yokogawa 720241 for Rent, CAN/LIN Bus Monitor Module

Product Highlights

The Yokogawa 720241 CAN/LIN Bus Monitor Module is used for monitoring and analyzing the data transmitted on a CAN or LIN bus. This module is used to decode the CAN or LIN-Bus signals and display information on physical data like engine temperature, vehicle speed and brake-pedal position as analog waveforms and compare this with the data coming from real sensors.

The Yokogawa 720241 CAN/LIN Bus Monitor Module is equipped with one CAN and one LIN input port, enabling a single module to be connected to a CAN and a LIN protocol network. This module interprets vehicle installed communication protocols, monitor the communication data, and display the time series trend waveforms. By combining Yokogawa 720241 CAN/LIN Bus Monitor Module module with other input modules, it can simultaneously measure the communication data in a vehicle, the voltage and temperature, the sensor signals and other changes in analog data over time, as well as ECU (Electronic Control Unit) control logic signals.
