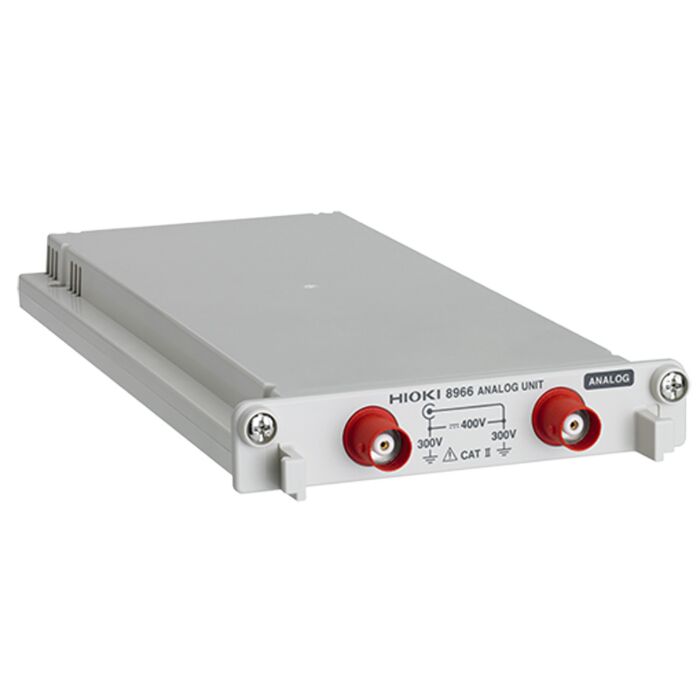

Hioki 8966 for Rent Analog Input Module

Hioki 8966 for Rent, Analog Input Module, 2 channel, 20MHz Sample, 2MHz Bandwidth, LAN/USB

Order # 8966-RENT1

Mfg # 8966-RENT1

call-regular 800-828-1470
$0.00
  • Overview
  • Specifications

Hioki 8966 for Rent, Analog Input Module, 2 channel, 20MHz Sample, 2MHz Bandwidth, LAN/USB

Order # 8966-RENT1 | Mfg # 8966-RENT1

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product highlights

  • 12-bit A/D resolution measurement
  • Reliably capture instantaneous waveforms using high speed 20MS/s sampling and A/D converter
  • Isolated input, up to 300V AC/DC from the earth

Specifications

Measurement functions Number of channels: 2, for voltage measurement
Input connectors Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF),
Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range 5 mV to 20 V/div, 12 ranges, full scale: 20 div, (AC voltage for possible measurement/display using the memory function: 280 V rms)
Low-pass filter: 5/50/500 Hz, 5 k/50 k/500 kHz
Measurement resolution 1/100 of measurement range (using 12-bit A/D conversion and when installed in the 8847)
Highest sampling rate 20 MS/s (simultaneous sampling across 2 channels)
Measurement accuracy ±0.5 % of full scale (with filter 5 Hz, zero position accuracy included)
Frequency characteristics DC to 5 MHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB
Input coupling AC/DC/GND
Max. allowable input 400 V DC (the maximum voltage that can be applied across input pins without damage)
Dimensions and mass 106 mm (4.17 in) W x 19.8 mm (0.78 in) H x 196.5 mm (7.74 in) D, 250 g (8.8 oz)
Accessories None
