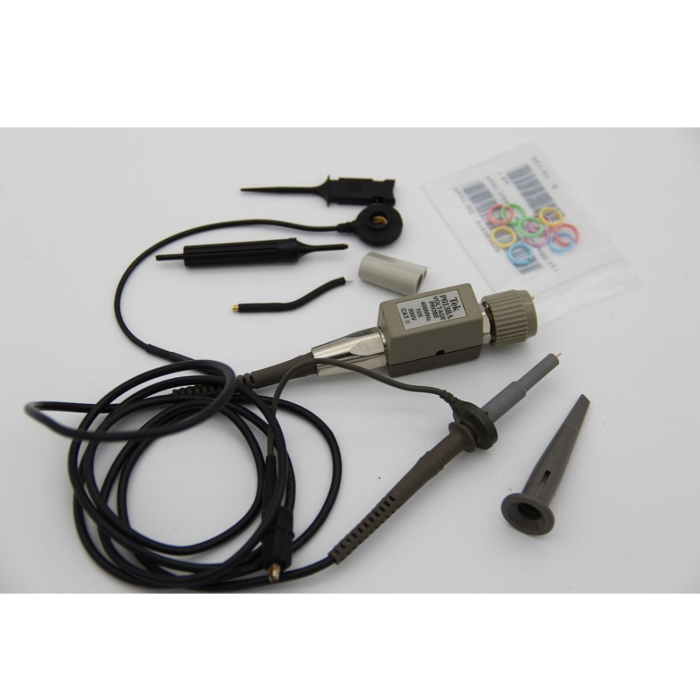

Tektronix P6138A for Rent, 400 MHz Passive Probe, 10X Attenuation, 10.0pF, 10MOhm

Tektronix P6138A Highlights

The P6138A probe is a compact, high-impedance, 10X passive probe designed for use with Tektronix TDS 400 series digitizing oscillosopes. The P6138A probe meets the requirements of UL3111-1 for ground-referenced applications and is fully compatible with the Tektronix family of 3.5 mm probe accessories.

• Bandwidth (with TDS 460A or TDS 430A): 400 MHz
• Bandwidth (with TDS 420A): 200 MHz
• Attenuation : 10X ±1.0% at DC
• Input Resistance : 10 MΩ ±1.0%
• Input Capacitance : 10.0 pF ± 0.8 pF
• Scope Input Resis : 1 MΩ
• Compensation Range : 12pF to 18pF
• Readout Pin : YES
• Ground Ref : NO
• ID Button : NO
• Max Rated Voltage : 300 VRMS
• Cable Length : 1.3 meters
• Net Weight : 0.24 lb (110 g)
• Scope Compatibility : TDS 400 Series
