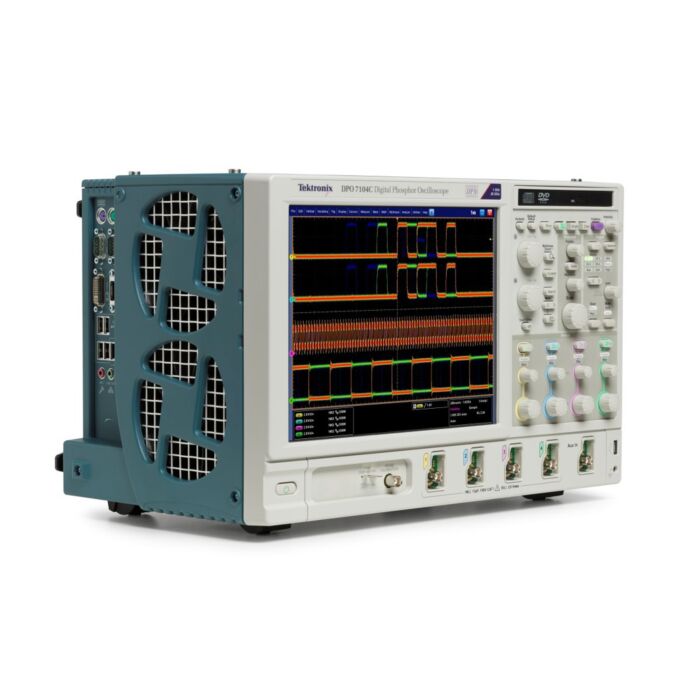

Tektronix DPO7104C for Rent, Digital Phosphor Oscilloscope, 1GHz, 4ch, 20 GS/s

Product Highlights

• 1 GHz Bandwidth
• Sample Rate: 20/10/5 GS/s (1/2/4 chs)
• FastAcq provides >250,000 wfm/s waveform capture rate
• Intensity-graded, color-graded digital phosphor display
• Pinpoint triggers, including serial packet content
• 25 Mpoint standard record lengths (4-ch.)
• Up to 250 Mpoint optional record lengths
• FastFrame segmented memory acquisitions
• Advanced Search and Mark: finds up to 8 specific events at a time
• MultiView Zoom for quick navigation
• 53 automated measurements
• Advanced math
• Included: Limit Test (LT), Visual Trigger and Search (VET), extended record length (2RL)
• Optional: Application-specific support, including: Serial bus debug, Serial bus compliance, Power analysis, Jitter analysis, RF analysis
