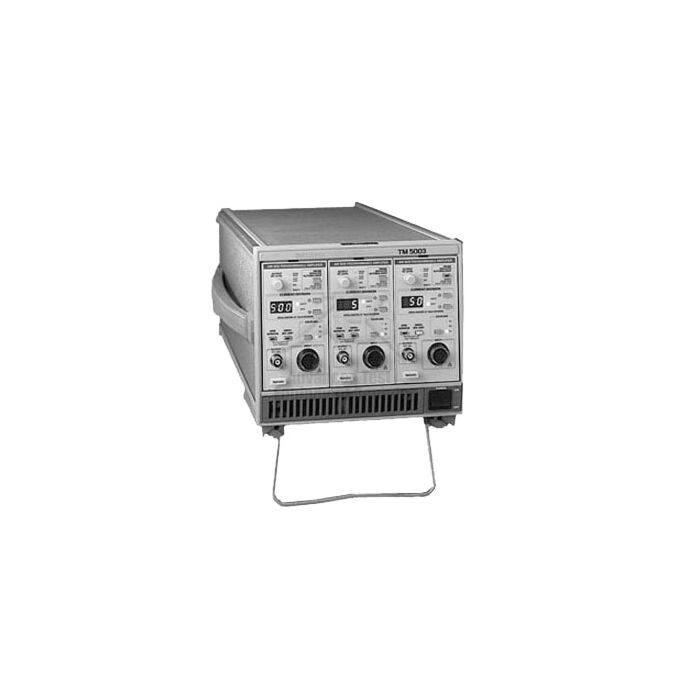

Tektronix AM 503S for Rent, Current Measurement System
Current Measurement System

Order #: AM 503S-RENT2

Mfg #: AM 503S

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Tektronix AM 503S for Rent, Current Measurement System

Current Measurement System

Order #: AM 503S-RENT2

Mfg #: AM 503S

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability: Call for Availability

Tektronix AM 503S Highlights

The AM503S Current Probe System is the most versatile current measurement system available. Since the probes incorporate both a transformer and a Hall Effect device, broadband AC/DC current can be measured simultaneously. Depending on the probe used, current from DC to 100 MHz and up to 700 A can be measured by clipping the split-core probes around the conductor. The AM503S is truly a system, consisting of an AM503B Current Probe Amplifier, a TM502A two-wide Power Module and an A6302 Current Probe. Options enable you to add or substitute an A6312 Current Probe, A6303 Current Probe or delete the A6302 Current Probe. If you require any of the XL current probes (longer length), then use Option 09, which deletes the A6302.

  • Manual Current Probe Amplifier
  • Push Button Auto Balance/Degauss
  • Bright LED Current/Division Display
  • Plugs into TM500/5000 Power Modules
  • AC/DC Measurements with A6302 Probe: DC to 50 MHz
  • 20 A Continuous/50 A Peak
  • Max. Conductor Diameter: 0.15 in
  • With A6303 Probe: DC to 15 MHz
  • 100 A Continuous/500 A Peak
  • Max. Conductor Diameter: 0.83 in.
  • With A6304XL Probe: DC to 2 MHz
  • 500 A Continuous/700 A Peak
  • Max. Conductor Diameter: 0.83 in.
  • With A6312 Probe: DC to 100 MHz
  • 20 A Continuous/50 A Peak
  • Max. Conductor Diameter: 0.15 in.
