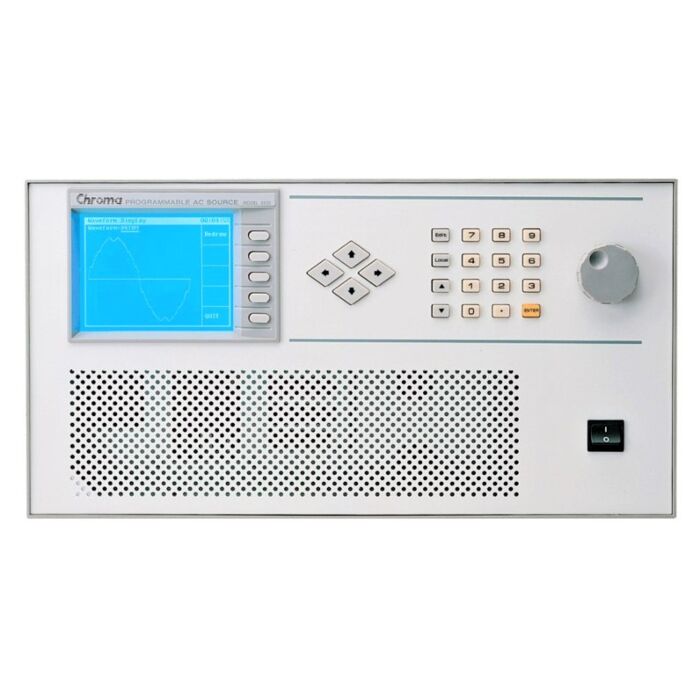

Chroma 6512 for Rent, AC Source, 1.2KVA, 0-300V, 15 - 2 kHz, 1 Phase

Product Highlights

The Chroma 6512 Programmable AC Power Source delivers the right solution to simulate all kinds of normal/abnormal input conditions and measure the critical characteristics of the products under test. It can simulate all kinds of power line disturbances such as cycle dropout, transient spike, brown out, phase angle, voltage and frequency ramp up (ramp down), etc. For the product tests under AC line distortion conditions, clipped sine wave can be generated with 0% to 43% distortion and amplitude from 0% to 100%. The Chroma 6512 also has built in Direct Digital Synthesis (DDS) Waveform Generator to provide user programmable high precision waveforms.

The input AC to DC stage in the Chroma 6512 AC Source incorporates a modern power factor correction circuit to increase the input power factor more than 0.98 to meet the IEC regulations. It reduces the input current requirement and raises the efficiency up to over 80%. It is suitable for commercial applications (47-63Hz) such as avionics, marine, and military applications at 400Hz or higher frequency or for electrical motor, air conditioner test applications at 20Hz. The Chroma 6512 has 16-bit precision measurement circuits to offer precision and highspeed measurements for Vrms, Irms, Ipk+, Ipk-, power, frequency, crest factor, power factor, inrush current, VA, and VAR.

Specifications of the CHROMA 6512 AC Power Source includes:
