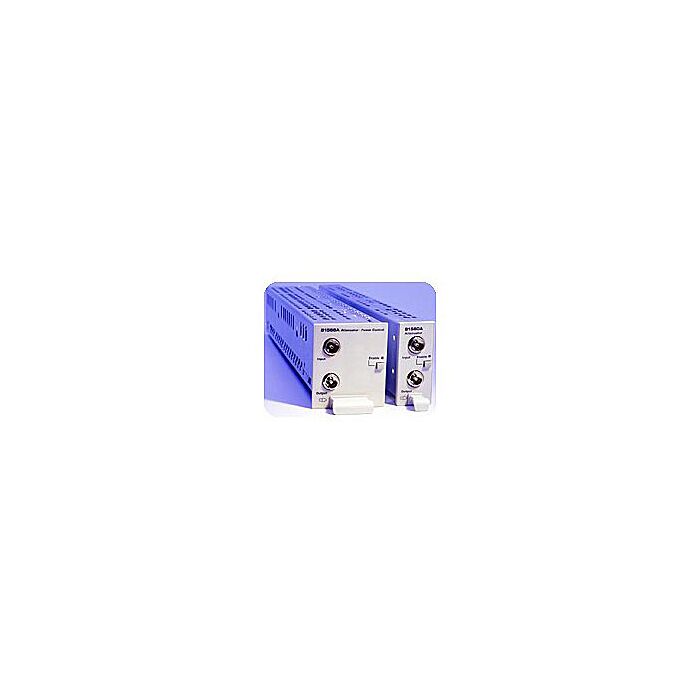

Keysight 81560A for Rent, Optical Attenuator

Keysight 81560A Highlights

The Keysight 81560A and 81561A are small and cost effective attenuator modules with high resolution. The Agilent 81566A and 81567A feature power control functionality that allows setting the output power level directly. When the power control mode is enabled, the module automatically corrects power changes at the input to maintain the output level set by the user.

• Connectivity: Straight connector
• Fiber Type: 9/125 µm SMF28
• Wavelength Range: 1200 - 1700 nm
• Attenuation Range: 0 - 60 dB
• Resolution: 0.001 dB
• Repeatability: ± 0.01 dB
• Accuracy (uncertainty): ± 0.1 dB
• Settling Time typ.: Insertion Loss typ.: 1.7 dB
• Polariztion Dependent Loss: Return Loss typ.: > 45 dB
• Maximum Input Power: + 23 dBm
• Shutter Isolation typ.: > 100 dB
