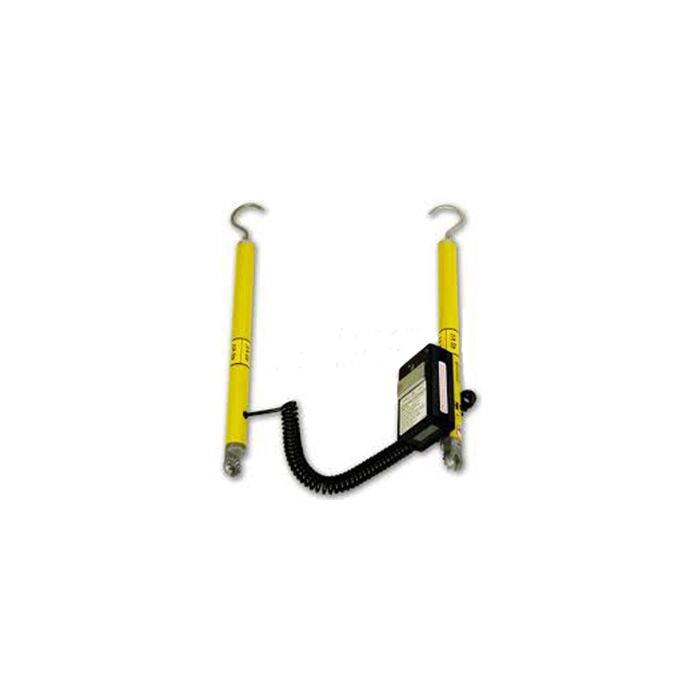

Hastings 6702 for Rent, Digital High Voltage Phasing Meter, 40kV, with Hot Sticks

Product Highlights

• Instrument for measuring overhead and underground voltages.
• Three modes of operation AC, Hi-Pot, and DC.
• 0-40KV meter up to 240KV with resistors.
• Automatically adjust voltage display to match resistors if used.
• Hi-Pot mode for testing URD Cable.
• In Hi-Pot mode bar graph marks the peak voltage while cable is being charged.
• 0-4KV DC.
• Large easy to read digital meter and analog bar graph.
• Meter reads to nearest 100 volts.
• Meter has lighted background that can be turned on for use in poor light conditions.
• Meter enclosure made of high quality rugged extruded aluminum.
• Auto shutdown after 40 minutes if no voltage is detected.
• Long battery life from three AA’s.
• Auto self test and battery check during start up.
• The coiled, self retracting cable is 16” retracted and 10’ when fully extended.
• Line Voltage Mode: 0 – 40 kV AC 0 – 4 kV DC
• Operating frequency:50 – 60 Hz AC, DC
• Batteries: 3 x 1.5V Alkaline or NiMH “AA” Battery Life 24 hrs (backlight on continuously) 14 days (backlight off continuously)
• Operating Temperature: -40ºF to 122ºF
• Storage Temperature: -40ºF to 158ºF
• Weight: 3.8lbs (without probes) 4.0 lbs (with probes)
• Accuracy: 1% - Accuracy is affected in the field by the proximity of other conductive objects in the vicinity of this Meter. Keeping the cord away from other objects will improve accuracy.
• Power Supply: Batteries 3 x 1.5V Alkaline or NiMH “AA”
• Manufacturer Warranty: 1 Year

Unit includes

• Digital volt meter, conductor hooks, carry case, batteries, and instructions.
