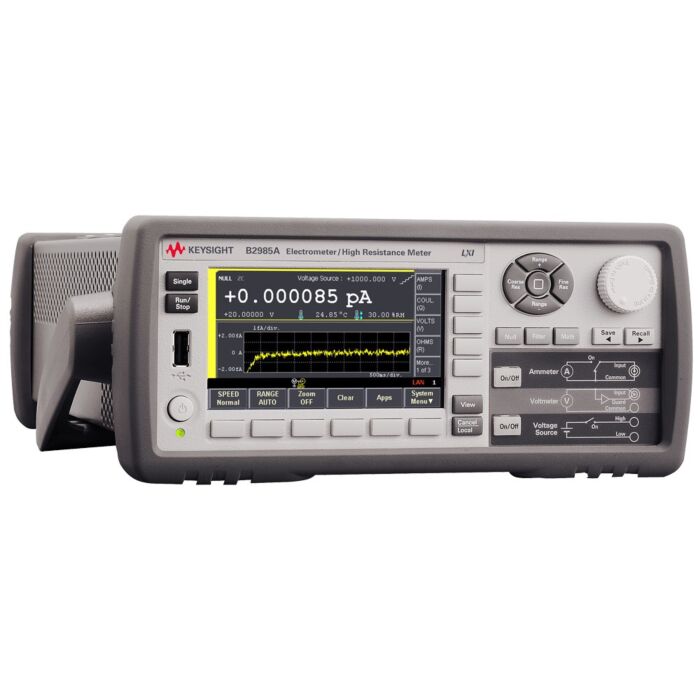

Keysight B2985A for Rent, Electrometer/Picoammeter/High Resistance Meter, 0.01fA
Order #B2985A-RENT1|Mfg #B2985A-RENT1
For Rent
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Have a Question?
Speak to a Transcat Rental Expert at 800.264.4059
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
0.01 fA minimum measurement resolution
10 PΩ maximum resistance measurement with 1000 V source
20,000 readings/s
< 20 µV burden voltage
Time domain view to capture transients
Histogram view to perform quick data analysis
Other X-Y plots (I-V, I-t, R-t, Q-t, I-R, etc.)
Setup integrity checker software (Option)
Easy-to-use auto navigation
Furnished with high-performance Keysight triaxial cable (1.5 m)
The B2985A Electrometer/High Resistance Meter is the world's only graphical electrometer that allows you to confidently measures small currents with 0.01 fA (0.01 x 10-15 A) resolution and large resistances of up to 10 PΩ (10 x 1015 Ω). It possesses a 4.3" color LCD with a graphical user interface that provides trend chart and histogram data in addition to numeric information. These front-panel capabilities enable you to capture transient behavior and to perform quick statistical analyses without a PC. The available Setup Integrity Checker software option allows you to compare the noise levels of different cabling and fixturing arrangements to help isolate external noise sources.
