Product Highlights

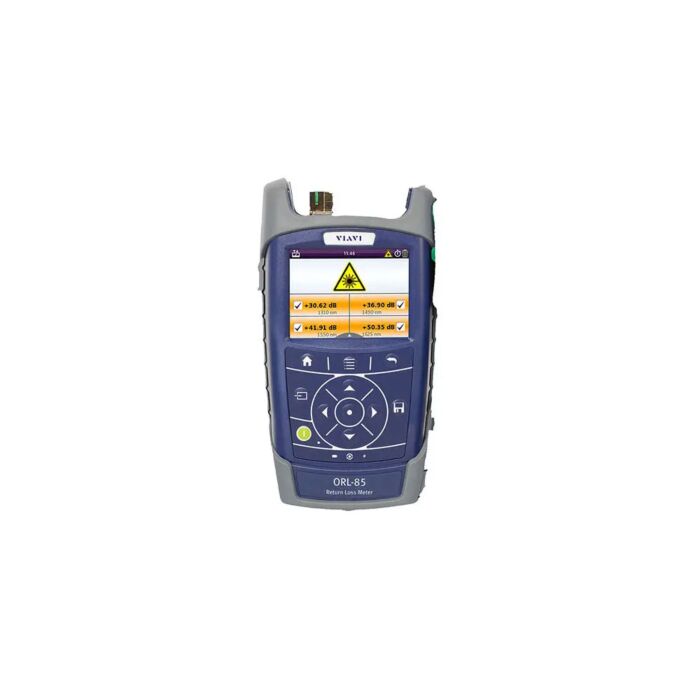

The Viavi 231121 is a SmartClass Fiber ORL-85 Optical Return Loss Meter, 1310/1550 nm with APC. It combines fiber inspection, optical power meter (OPM), light source (OLS), and continuous wave return loss meter (OCWR) in one versatile test instrument. This compact meter is ideal for measuring optical return loss and inspecting fiber connector end faces to verify optical connection quality.
Features
- Combines optical power meter, light source, continuous wave return loss meter, and connector inspection in one compact instrument
- Real-time simultaneous return loss measurements at 1310 and 1550 nm wavelengths
- Automated pass/fail fiber inspection analysis with P5000i microscope (sold separately)
- Onboard fiber inspection and test results storage with time stamp
- 70 dB high precision return loss meter
- 3.5 in. color touch screen with integrated stylus
- In-service loss test option
- Battery-operated, field-portable instrument provides full day of autonomy
- Data transfer and remote control via USB, Ethernet or optional WiFi connection
- Shielded housing for extreme accuracy in RF environments
- Rugged, weather-proof design for outdoor use
