Product Highlights

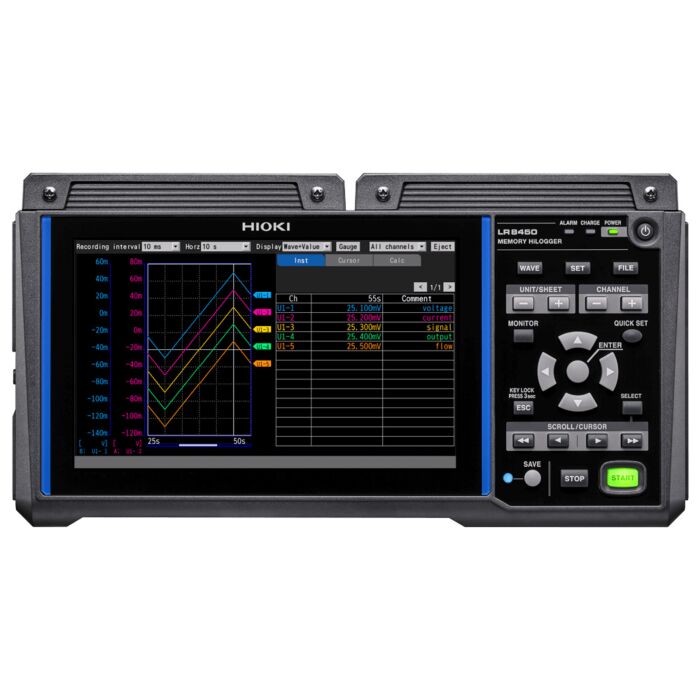

MEMORY HiLOGGER LR8450-01 (Wireless LAN model)

1ms Sampling Portable Logger Expandable to 330 Channels with Your Choice of Plug-in or Wireless Input Modules

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8450-01 offers 1ms sampling across up to 330 channels, and can be paired with 10 different types of plug-in or wireless input units. Collect data from wireless modules installed in remote or confined locations via a LAN connection. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.

Actual measurement example using CAN UNIT. The analog data measuring the temperature inside the vehicle and the CAN data are simultaneously displayed on the waveform in real time. You can also see how the measured analog data is output as CAN signals in real time.

Wireless units can be easily registered in 2 steps! Memory HiLogger LR8450-01 is a data logger equipped with wireless LAN. It is ideal for collecting data in dispersed locations and locations where wiring is difficult. You can add up to 7 wireless units and measure up to 330 channels. Will introduce to you two easy steps, to register the wireless units onto the main module.

Key Features

  • Wireless LAN model expandable to 330 ch with wireless and plug-in units
  • Record voltage output from pressure and other sensors with 1ms sampling speed
  • Directly connect strain gauge and measure signals in as fast as 1ms intervals
  • Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
  • Avoid wiring issues by minimizing cable length using wireless units
  • Monitor data captured remotely on PC with wireless LAN technology

Stable Logging - Even at High Voltages and Frequencies. Minimize the Effects of Noise.

The LR8450 reduces the effects of noise to deliver stable logging, even at high voltages and frequencies.

Legacy data loggers could not log temperature accurately in noisy environments due to the effects of high frequencies, which caused values to shift or fluctuate significantly.

The new Hioki Memory HiLogger LR8450 uses a revamped design to dramatically reduce the effects of high-frequency noise, and is ideal for temperature logging of inverters and batteries.

Connect strain gages directly and make measurements in as little as 1 ms.

The Memory HiLogger LR8450 is a data logger that can measure stress via directly connected strain gages. Capable of recording at frequencies on the order of dozens of hertz thanks to sampling at up to 1 ms, the LR8450 is ideal for measuring stress and load on moving parts and strain on components such as brakes and pipes. And because it can accommodate a mix of various measurement units, the LR8450 can simultaneously measure strain, temperature, and voltage as necessary.

Add a total of up to 7 wireless units for a maximum of 330 channels

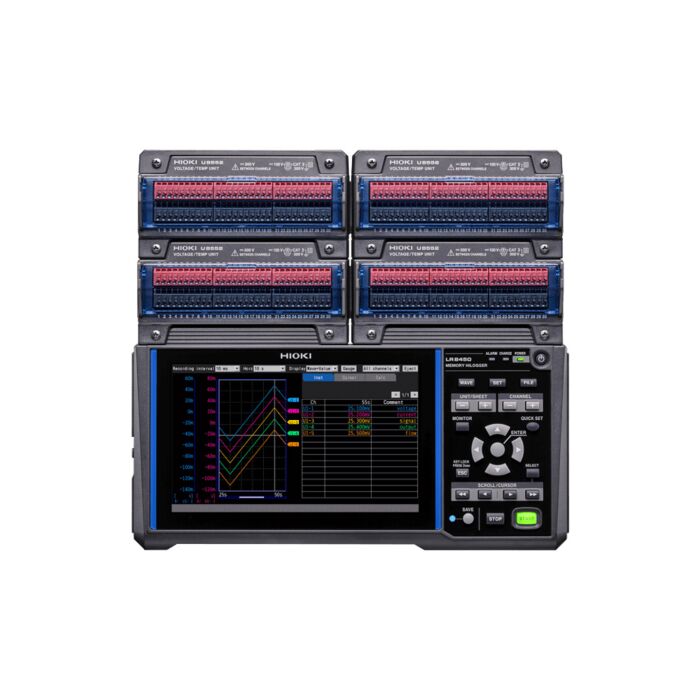

With four U8552 VOLTAGE/TEMP Units and seven LR8532 WIRELESS VOLTAGE/TEMP Units, you can measure a total of 330 channels.

Analog 600 CH Synchronous Sampling Measurement [Since V2.10]

Synchronized sampling up to 5 plug-in modules (600 analog channels) can be measured when multiple LR8450's external sync terminals (SYNC.IN, SYNC.OUT) are connected.

Sample output from a variety of sensors, including 1 ms pressure sensors

Measures at a sampling rate of up to 1 ms. 1 ms sampling rate is the best match to measure sensor outputs with a frequency response of under 100 Hz, for example pressure and vibration sensors.

Measure strain with a 1 ms sampling rate

Connect strain gauges directly and measure at a sampling rate of up to 1 ms. Strain gauges tend to have long, thin wires that are easily broken, but that potential pitfall can be avoided by using wireless units so that wire length is minimized.

Measure temperature near an inverter or battery

Measures at a sampling rate of up to 10 ms.

Make measurements in locations where it would be difficult to route wires

Work time can be reduced by using the LR8450-01 and wireless units, since only minimal wiring is required. If the measurement target is located in a lab, this approach eliminates the need to string wire and drill holes in the walls of the monitoring room where data is checked.

Observe data from a remote location using a PC or tablet

By connecting the LR8450-01 to a PC or tablet via a wireless LAN, you can control the instrument remotely using the built-in HTTP server or download data files using the built-in FTP server.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

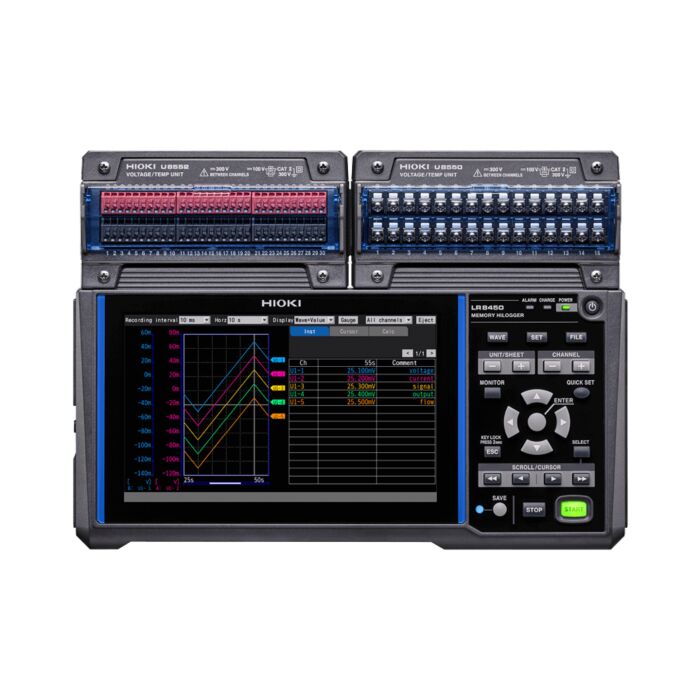

Max. number of connectable modules 4 plug-in input modules + 7 wireless input modules
Connectable modules
(Plug-in modules)
U8550, U8551, U8552, U8553, U8554, U8555
(U8555: supported V2.00 or later)
Connectable modules
(Wireless modules)
LR8530, LR8531, LR8532, LR8533, LR8534, LR8535
(LR8535: supported V2.00 or later)
No. of measurement channels Up to 120 ch with plug-in input modules, up to 330 ch with plug-in input modules and wireless input modules
(U8555 and LR8535 can input up to 500 channels per unit)

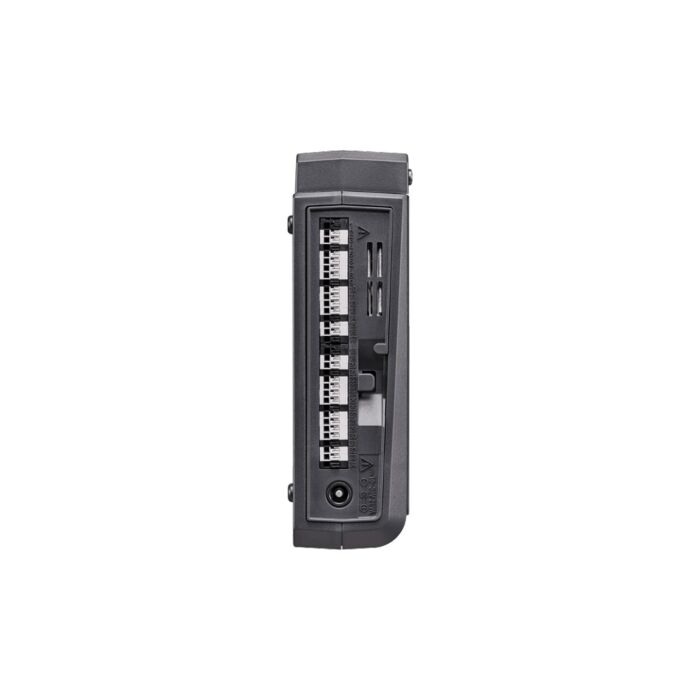

Pulse/logic input [Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels)
[Adaptive input format] Non-voltage contact, open collector, or voltage input
[Count] 0 to 1000 M pulse, 1 pulse resolution
[Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000)
[Logic input] Records 1 or 0 for each recording interval
Recording intervals 1 ms*, 2 ms*, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each unit
Data storage SD Memory Card/USB Drive (user-selectable)
(Only storage media sold by HIOKI are guaranteed for operation)
LAN interface 100BASE-TX / 1000BASE-T, DHCP, DNS support,
Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client
Wireless LAN interface IEEE 802.11b/g/n
Communications range: 30 m, line of sight
Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES
Usable channels: 1 to 11
Supported modes: Wireless unit connectivity, access point, station
Functions: Configuring settings and controlling recording using communications commands, FTP server / client, HTTP server, Email transmission, NTP client
USB interface Series A receptacle
