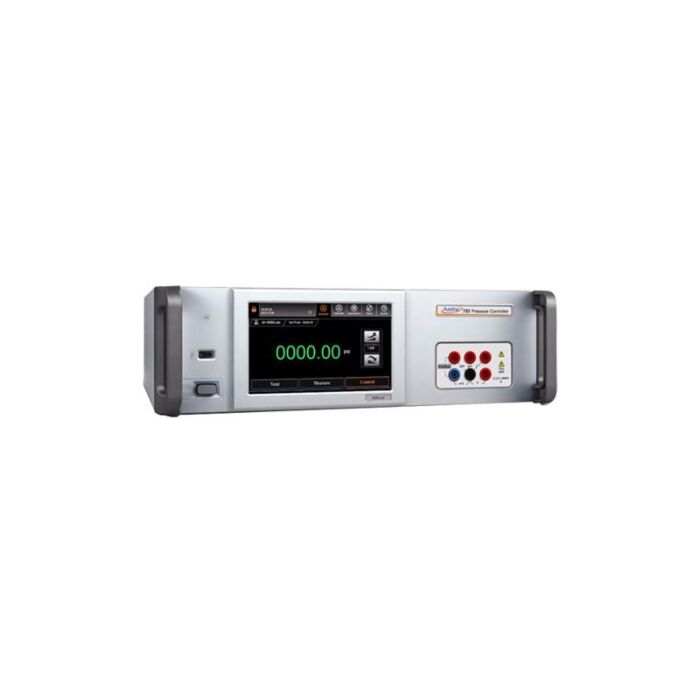

Additel ADT780-1K FOR RENT

Pressure Controller, 1000 psi 0.01% Accuracy

Order #: ADT780-1K-RENT1

Mfg #: ADT780-1K-RENT1

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Additel ADT780-1K FOR RENT

Pressure Controller, 1000 psi 0.01% Accuracy

Order #: ADT780-1K-RENT1

Mfg #: ADT780-1K-RENT1

Call for price
Call for price

Rent from the Instrument experts at TranscatRent from the Instrument experts at Transcat
Availability: Call for Availability
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Questions about this product? Speak to an expert

Product Highlights

  • Pressure ranges from vacuum to 3,000 psi (200 bar)
  • Precision accuracy models to 0.01% of reading
  • Standard model accuracy of 0.02% of full scale
  • HART Communication and Profibus PA
  • Control stability of 0.003%FS
  • Easy-to-use icon based user interface
  • ISO 17025-accredited calibration w/data included

For years, we've provided the most durable, accurate, quality pressure calibration products for field applications. The Additel 780 controller incorporates the same durability, accuracy, and quality into a new bench top controller packed with features and functionality that is remarkably easy to use. The Additel 780 offers two base ranges: to 1,000 psi (70 bar) and to 3,000 psi (200 bar). The base range establishes the maximum controlling range of the controller. Each configuration includes a control sensor in which you can preselect the sensor range best suited your application. External and internal sensors can be used which allows for expanded range and accuracy capability in the future.

Modular Design
Each unit comes with one Intelligent Pressure Module configured to the many range offerings provided. Standard accuracy sensors (ADT160A-CPXXX) are silicon pressure sensors with a 1 year accuracy of 0.02% FS. The precision quartz based sensors improve the 1 year accuracy specification to 0.005% of reading + 0.005% FS. Each sensor has been specially aged, tested and screened before assembly. After assembly each sensor is temperature compensated over the range of -10°C to 50°C. The Additel 780 allows for one internal pressure sensor and one external pressure sensor. The modular design of this unit provides for interchangeability of both the internal and external sensors with other Intelligent Pressure Modules.In addition to the Intelligent Pressure Modules, the Additel 780 has a built in barometric sensor. This allows for switching between gauge pressures to absolute pressures.

Standalone Solution
Typical pressure controllers will require a nitrogen bottle for the gas supply which make it difficult to move the controller around without having to move or connect to another bottle. The Additel 780 is unique in that with the optional electric pump, you can generate pressures to 1,000 psi (70 bar) without the need of a gas bottle.

Process Functionality
The 780 Pressure Controller is considered to handle a very wide range of applications which may normally require a pressure calibrator. Built-in capability, includes current and voltage measurement capability, 24 volt loop power, HART® and Profibus PA communication, switch measurement capability, selectable analog output and much more.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Specification ADT780-1K ADT780-3K
Pressure range -14.5 to 1,000 psi (-0.95 to 70 bar) -14.5 to 3,000 psi (-0.95 to 200 bar)[1]
Control stability 0.003% FS (stability based on % FS of control sensor range)
Precision (includes 1 year stability) See pressure range table
Media Clean gas
Over-range indication 103% to 120% (based on sensor)
Resolution 4, 5, 6, or 7 digits (user selectable)[2]
Pressure type Gauge, Absolute
Warm up time 15 minutes
Measurement units Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, kg/m2, kg/cm2, mtorr, torr, atm, lb/ft2, tsi, user selectable
Minimum control pressure 0.0001 psi 0.001 psi
