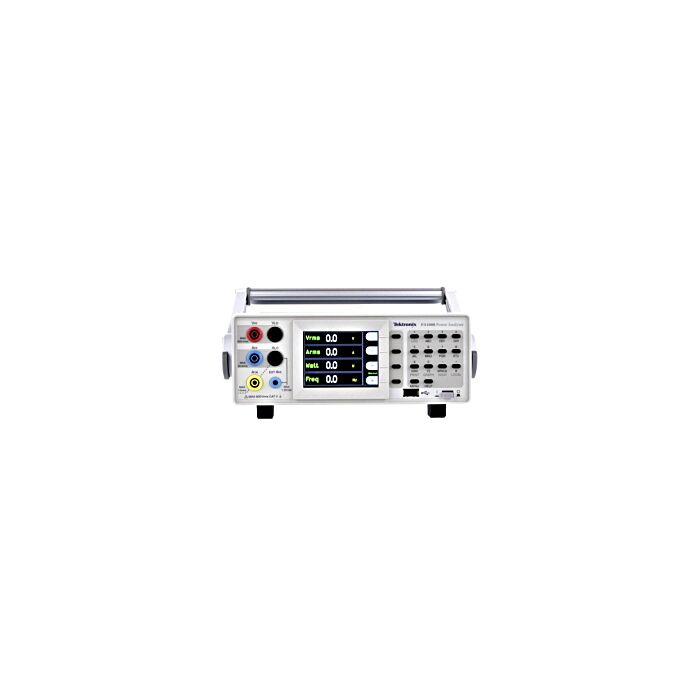

Tektronix PA1000 for Rent, Single-Phase Power Analyzer

Product Highlights

The Tektronix PA1000 is a single-phase, single-channel power analysis solution that is optimized for fast, efficient, and accurate power consumption testing to international standards. It's compact size, DMM-like user-interface, graphical display, and powerful software enable users to quickly visualize, analyze, and document the power consumption efficiency of next-generation devices, including standby power measurements and harmonic analysis.

Most of today's AC-powered electronics and electro-mechanical products have government or consumer efficiency regulations they must meet. The Tektronix PA1000 simplifies the process of proving that designs meet these requirements by offering a complete bench-top solution for single phase power consumption analysis. Use the standard front-panel input jacks and optional breakout box to simplify connections to the device under test, then analyze and document the results with the free PWRVIEW software.

• 1 MHz bandwidth
• 5 mW standby power measurements
• Harmonic analysis to the 50th order (standard)
• +/- 0.04% basic accuracy
• 20 uA to 20 Arms direct current input
• 1 V to 600 Vrms (Cat II) voltage input USB, LAN, and GPIB interfaces (standard)
