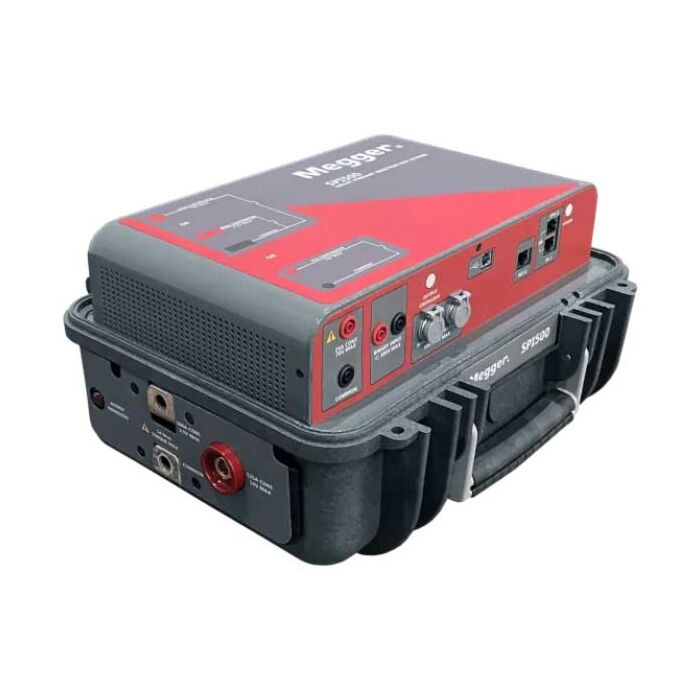

The SPI500 is a powerful and versatile testing system designed to meet the demanding needs of substation testing. It can handle a wide range of high-current tests, including those for electronic reclosers, circuit breakers, high-speed fuses, and ground fault relays.
With the ability to control up to two SPI500B boosters, the SPI500 can increase its testing capacity by up to three times. Its unique control system ensures accurate and reliable testing, even under changing load conditions.
The SPI500 offers both manual and automatic control options, with the Smart Touch View Interface (STVI) providing easy-to-use manual control and the PC-based control system enabling fully automated testing and report generation.
The SPI500 can test self-powered reclosers like the S&C Tripsaver with the push of one button. Also, the most portable test set for testing breakers under 600 A or for testing Modified Differential Ground Fault schemes (MDGF).
- 2500 A output with main unit
- Up to 6500 A output with 2 boosters
- Add boosters for output capacity
- 120 or 240 V input (auto detects input voltage)
- Designed for self-powered recloser, highspeed fuse, circuit breaker, or ground fault relay testing
- Software includes hundreds of circuit breaker TCC curves
Each Unit Includes
- Accessory carry case
- Alligator clip, red, 4.1 mm
- Alligator clip, black, 4.1 mm
- Sleeved pair of test leads with retractable shroud: Sleeved test leads, one red, one black, 200 cm (78.7 in) long, 600 V, 32 A CAT I
- Current lead for 125A Tap: AWG#6 61 cm (2 ft) long 1004-728
- Current lead: AWG 4/0 61 cm (2 ft) long, red 1008-280
- Current lead: AWG 4/0 61 cm (2 ft) long, black 1008-279
