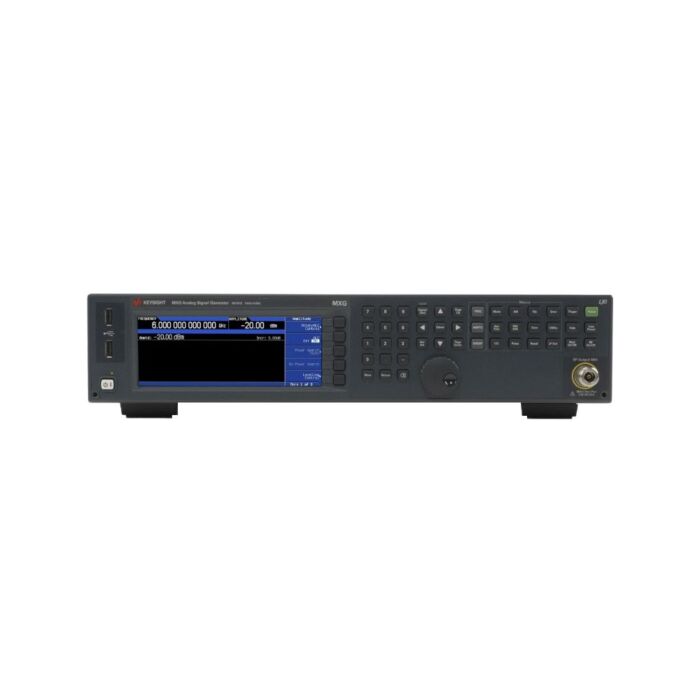

The Keysight N5181B MXG RF Analog Signal Generator, with its pure and precise hardware performance, generates the signals you need for all of your R&D requirements and lets you take your devices and designs to the limit. It provides phase noise, non-harmonics, output power, and much more:
Test radar receiver sensitivity or characterize ADC or mixer signal-to-noise ratio, with unmatched phase noise and spurious performance
Drive receiver front-ends for out-of-band rejection with industry-leading output power
Simulate multi-channel composite analog modulation with integrated multifunction generator
Create variable RADAR PRI and pulse width with integrated pulse train generator
Features
Signal Characteristics:
9 kHz to 3 or 6 GHz
+24 dBm specified power to 3 GHz with electronic attenuator
-146 dBc phase noise at 1 GHz and 20 kHz offset
-96 dBc non-harmonics at 1 GHz and > 10kHz offset
Modulation and Sweep:
AM, FM, ØM, pulse, and narrow pulse
Pulse train generator
10 MHz multifunction generator and LF out
Digital step and list sweep modes
Automation and Communication Interface:
1000BaseT LAN, LXI, USB 2.0, and GPIB
SCPI, IVI-COM, MATLAB drivers
Backward compatible with ESG, MXG, PSG, and 8648x signal generators
Agilent USB power sensor compatible with embedded display and SCPI control
Frequency Specifications:
Frequency Range:
Option 503: 9 kHz to 3 GHz
Option 506: 9 kHz to 6 GHz
Resolution: 0.01 Hz
Phase Offset: Adjustable in nominal 0.1 degree increments
Frequency Switching Speed:
CW Mode:
SCPI Mode: ≤ 5 ms, typical
List /Step Sweep Mode: ≤ 5 ms, typical
Frequency Reference:
Accuracy:
Adjustment Resolution: < 1 x 10-10, nominal
Temperature Effects: < ± 2 x 10-8 from 20 to 30 degree C, nominal
Line Voltage Effects: < ± 1 x 10-9 for ± 10% change
Reference Output:
Frequency: 10 MHz
Amplitude: ≥ +4 dBm, nominal into 50 Ω load
External Reference Input:
Input Frequency, standard: 10 MHz
Lock Range: ± 1 ppm
Amplitude: 5 dBm ± 2 dB, nominal
Impedance: 50 Ω, nominal
Waveform: Sine or square
Sweep Modes (frequency and amplitude):
Operating Modes:
Step Sweep:
Equally spaced frequency and amplitude or
Logarithmically spaced frequency steps
List Sweep: Arbitrary list of frequency and amplitude step
