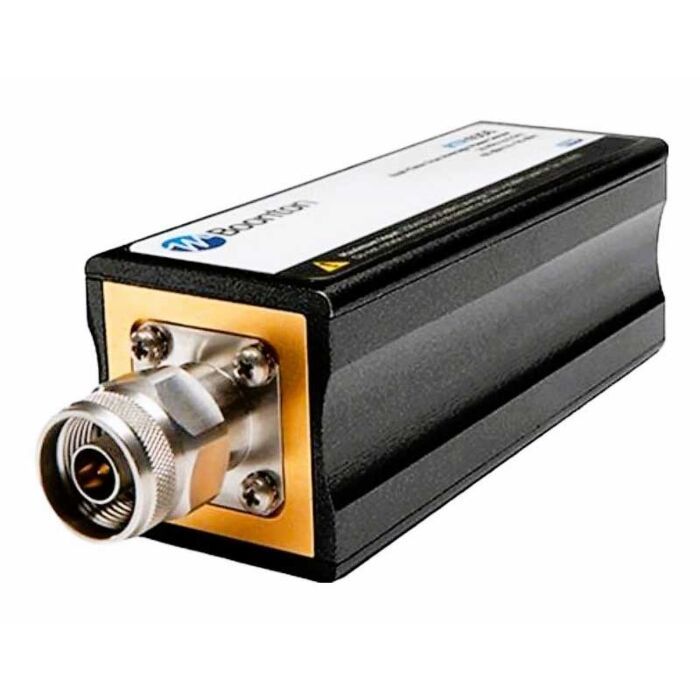

Boonton RTP4006 for Rent, Real-Time Tru-Average Power Sensor, 10 MHz to 6 GHz, -60 to +20 dBm

Order # RTP4006-RENT3 | Mfg # RTP4006

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Product Highlights

The Boonton RTP4006 true average power sensors provide 80 dB dynamic range and a frequency range down to 10 MHz. Built with Boonton's Real-Time Power Processing, these sensors deliver 100,000 measurements per second, no gaps in signal acquisition and zero measurement latency. Combining this performance with pulse profiling, capture and measure of pulsed, CW and modulated signals, multi-channel capabilities and documentation tools, RTP4006 average power sensors are the ideal instrument for fast, accurate and reliable RF power measurements. While conventional power meters and USB sensors perform steps serially, resulting in long re-arm times and missed data, Boonton sensors with Real-Time Power Processing capture, display and measure every pulse, glitch and detail with no gaps in data and zero latency.

Frequency Range 10 MHz to 6 GHz
Dynamic Range (avg) -60 dBm to +20 dBm
Rise time (fast/std) 2 us / 1 ms
Video Bandwidth (high/std) 175 kHz / 350 Hz
