Amplifier Research 75S6G18C for Rent, Microwave Solid State Amplifier, 75W, 6 to 18 GHz
Microwave Solid State Amplifier, 75W, 6 to 18 GHz

Order #: 75S6G18C-RENT3

Mfg #: 75S6G18C

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Amplifier Research 75S6G18C for Rent, Microwave Solid State Amplifier, 75W, 6 to 18 GHz

Microwave Solid State Amplifier, 75W, 6 to 18 GHz

Order #: 75S6G18C-RENT3

Mfg #: 75S6G18C

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price

Product Highlights

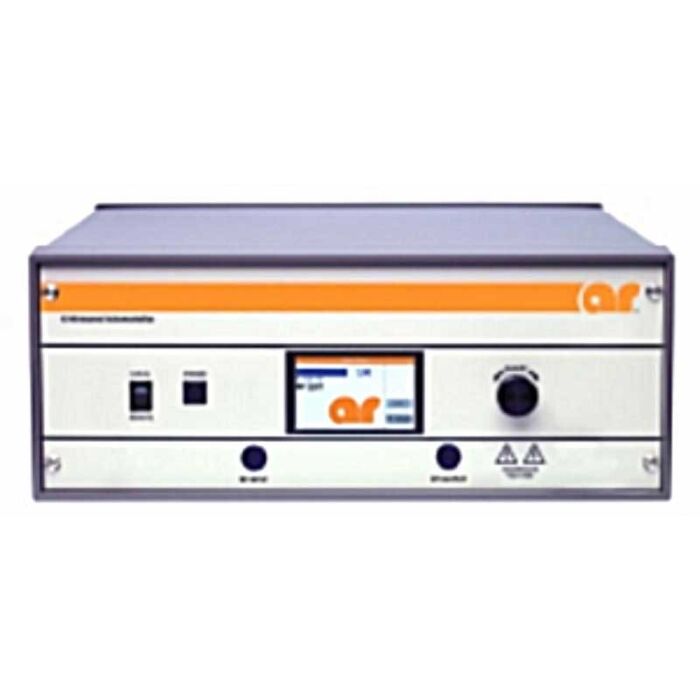

The Amplifier Research 75S6G18C Microwave Solid State Amplifier is a Class A design, self-contained, air-cooled, broadband power amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. It will provide a minimum of 75 W across its operating bandwidth of 6.0 - 12.0 GHz and 65 W from 12.0 - 18.0 GHz. Protection from input overdrive beyond 0 dBm is provided as well as protection from various failure conditions including over-temperature and power supply faults. Amplifier Research 75S6G18C Microwave Solid State Amplifier has low spurious levels and harmonic distortion of -25 dBc.

Amplifier Research 75S6G18C Microwave Solid State Amplifier is a multiple purpose amplifier. The low level of spurious signals and linearity make it ideal for use as a driver in testing wireless and communication components and subsystems. By covering such a wide bandwidth, it is suitable for a variety of communication technologies such as CDMA, W-CDMA, TDMA, GSM, UWB, WiMAX etc. All amplifier control functions, and status indications are available remotely using GPIB/IEEE-488, RS-232, fiber-optic serial, USB, or Ethernet. Interface connectors are located on the back panel of Amplifier Research 75S6G18C. Local and remote operation is managed by a switch on the front panel.

Specifications for the Amplifier Research 75S6G18C Microwave Solid State Amplifier Include:

Operating Frequency 6 to 18 GHz
Gain (Small Signal) 54 dB (Typical)
Power Output @ 3 dB Compression (6.0 - 12.0 GHz) 110 W (Typical)
Power Consumption 1200 W (Max)
