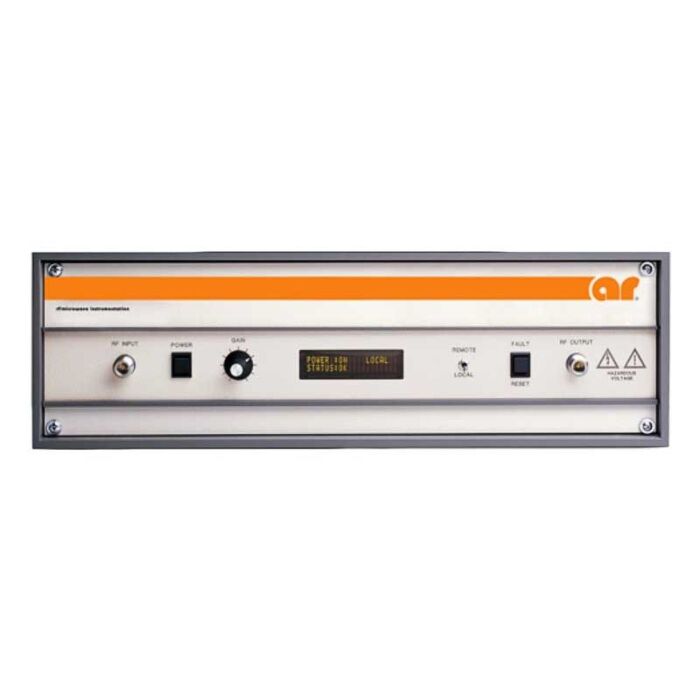

Amplifier Research 50U1000 for Rent, RF Amplifier, 10 kHz - 1 GHz, 50W
RF Amplifier, 10 kHz - 1 GHz, 50W

Order #: 50U1000-RENT3

Mfg #: 50U1000

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Amplifier Research 50U1000 for Rent, RF Amplifier, 10 kHz - 1 GHz, 50W

RF Amplifier, 10 kHz - 1 GHz, 50W

Order #: 50U1000-RENT3

Mfg #: 50U1000

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price

Product Highlights

The Amplifier Research 50U1000, when used with a sweep generator, will provide a minimum of 50 watts of RF power. Available in a stylish, contemporary cabinet for benchtop use or with cabinet removed for rack mounting. All amplifier control functions and status indications are available remotely through the optional Remotes Package. The Remotes Package includes GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet.

Included with the Amplifier Research 50U1000 is a front panel gain control which permits the operator to conveniently set the desired output level. It is protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0dBm. The front panel indicates the operate status and fault conditions if an over-temperature or power supply fault has occurred. The Amplifier Research 50U1000 is a solid-state, selfcontained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required.

Specifications for the Amplifier Research 50U1000 RF Amplifier Include:

Frequency 10kHz - 1000MHz
Rated Output Power 50W
Gain 47 dB min
Noise Figure 8 dB typical
