Amplifier Research 500S1G6 for Rent, Microwave Amplifier, 0.7 - 6GHz, 500W
Microwave Amplifier, 0.7 - 6GHz, 500W

Order #: 500S1G6-RENT3

Mfg #: 500S1G6

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Amplifier Research 500S1G6 for Rent, Microwave Amplifier, 0.7 - 6GHz, 500W

Microwave Amplifier, 0.7 - 6GHz, 500W

Order #: 500S1G6-RENT3

Mfg #: 500S1G6

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price

Product Highlights

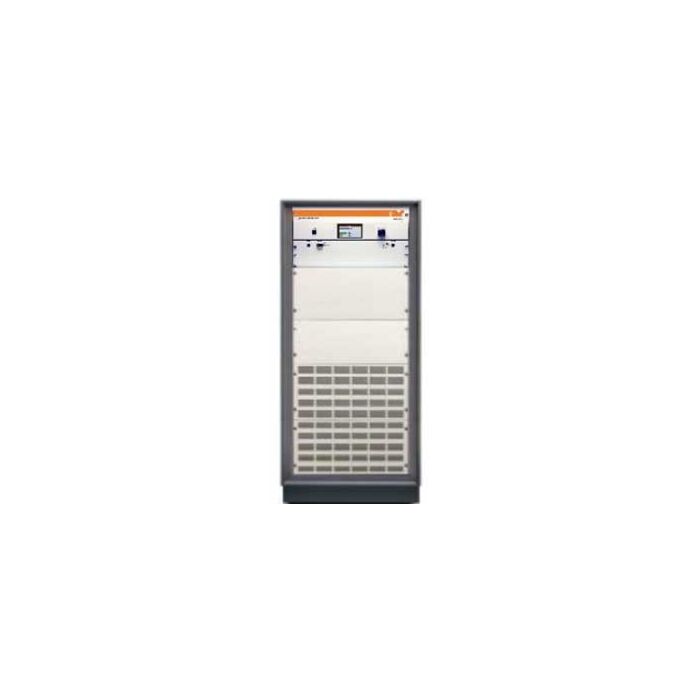

The Amplifier Research 500S1G6 is a portable, selfcontained, air-cooled, broadband, completely solid-state amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. It can be used as a test instrument covering multiple frequency bands and is suitable for a variety of communication technologies such as CDMA, W-CDMA, TDMA, GSM etc.  It is also suitable for EMC Test applications where undistorted modulation envelopes are desired.

The Amplifier Research 500S1G6, when used with a sweep generator, will provide a minimum of 500 watts of RF power over the 0.7 - 6GHz frequency range. It is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier and a single rotary knob to offer status reporting and control capability. The display provides Forward Power and Reflected Power values plus amplifier status. The low level of spurious signals and linearity of the Amplifier Research 500S1G6 make it ideal for use as a driver amplifier in testing wireless and communication components and subsystems.

Specifications for the Amplifier Research 500S1G6 Microwave Amplifier Include:

Rated Output power 500W
Frequency Response 0.7-6GHz
Gain (at max setting) 57 dB min
Harmonic Distortion -20 dBc typical
