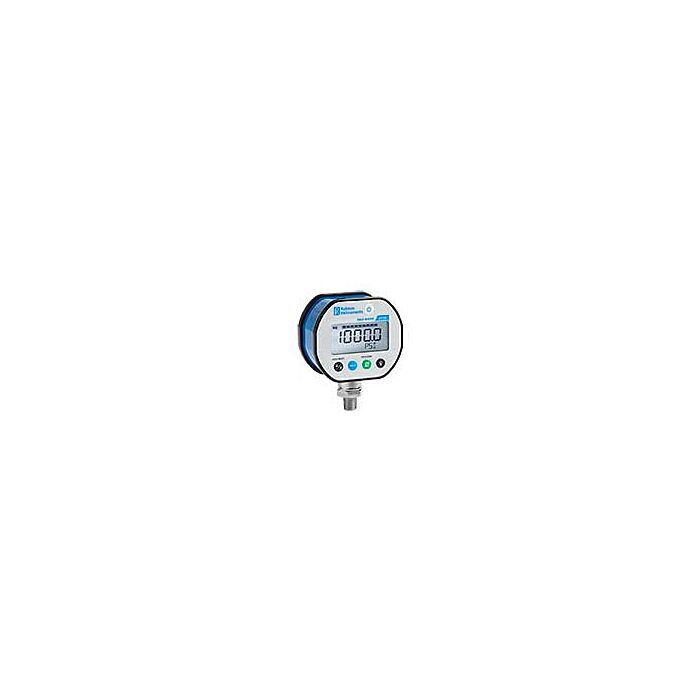

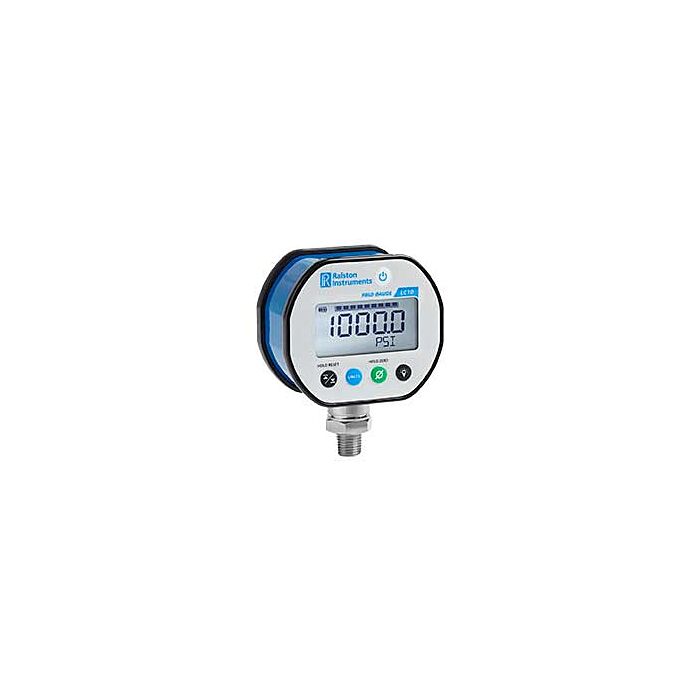

Ralston Instruments LC10 Pressure Gauge, 5K PSI/350bar/35 mPa, 1/4" NPTM Bottom

Order # LC10-GT2M | Mfg # LC10-GT2M
$728.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Ralston Instruments LC10 line of pressure gauges are compact, tough and reliable. Use them in the field, drop them in water, connect them to your PC.

  • Large LCD Display displays pressure or temperature with numbers and a bar graph
  • Bright backlight allows the user to operate device in low light situations
  • Durable Aluminum and high impact plastic case resists damage and abuse
  • Vacuum to 30 inHg/760 mbar, pressure ranges from 5 psi /35 kPa to 10,000 psi / 70 Mpa
  • 1/4% Full scale accuracy for all pressure ranges (ASME Grade 3A / ISO Class 0.25)
  • Zero function can be performed quickly using a single button
  • High/Low function allows the user to see the highest and lowest pressure or temperature reached
  • Easily change Pressure engineering units or remove unwanted units via free PC software
  • Read pressure or temperature live and add custom engineering units on FieldLab Desktop
  • Approvals for use in US, Canada, Europe, Australia
  • Made in USA

Each Unit Includes

  • Digital Pressure Gauge
  • 2 Meter Long USB Micro Cable
  • User Manual
