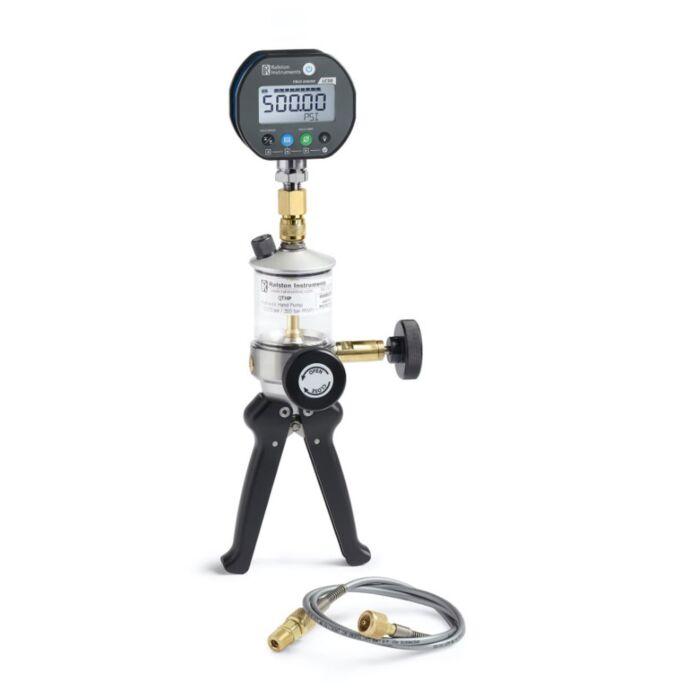

Ralston Instruments QTHP-KIT6-GT QTHP hydraulic pump, 5000 psi LC20 gauge, 3' hose, Adapter

Order # QTHP-KIT6-GT | Mfg # QTHP-KIT6-GT
$1,914.78

Made In The USA

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

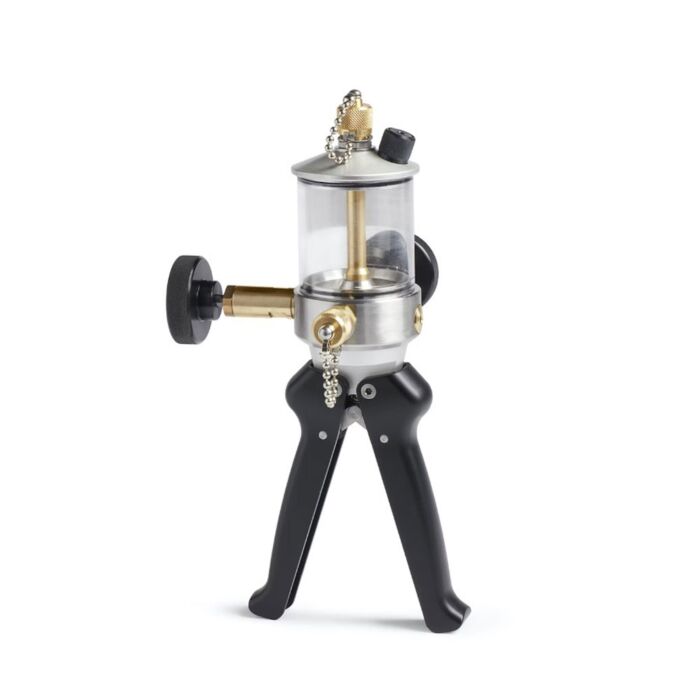

  • Hand Pump: QTHP Hydraulic Hand Pump
  • Pressure Reference: LC20 pressure gauge, 5000 psi / 35 MPa, 1/4" Male NPT bottom connection
  • Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
  • Bottle: Bottle with flip top for Hydraulic pump fluid, empty

Each Unit Includes

  • LC20 pressure gauge, 5000 psi / 35 MPa, 1/4" Male NPT bottom connection LC20-GT2M-00-00
  • 1/4" female NPT x female Quick-test, no check-valve, brass QTHA-2FBA
  • 1/4" male NPT x male Quick-test, no check-valve, brass QTHA-2MB0
  • Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long QTQT-HOS-3ft
  • Bottle with flip top for Hydraulic pump fluid, empty QTHP-BOTL
  • USB-A to Micro USB-B cable, 2m long D-000040
  • ISO 17025:2017 Accredited Calibration certificate for Field Gauge models LC10, LC20, LC30
  • SERV-0026

Technical Resources

Specifications

Country of origin USA
Hose 1 Quick-test Hose, Stainless Steel ends, 3ft / 0.9m long
Pressure Reference Digital pressure gauge, 1000 PSIG Pressure
Process Connection 1/4" Male NPT
Reference Connection 1/4" Female NPT
