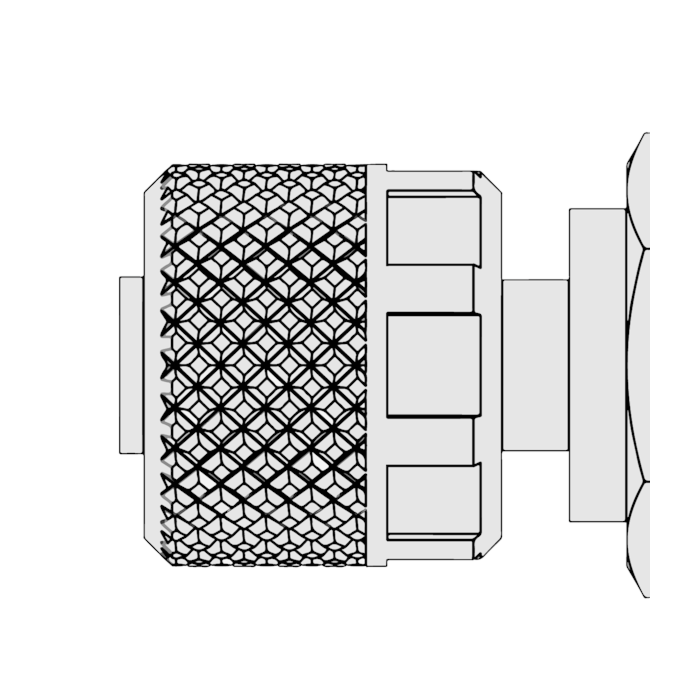

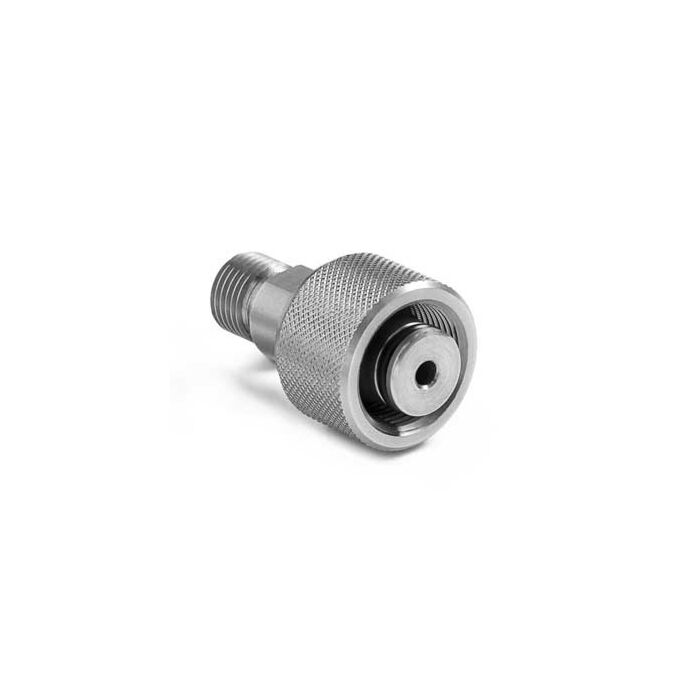

Ralston Instruments QTHA-4TS0 1/2" Tube Fitting x Male QT, no Check-valve, Stainless Steel Adapter

Order # QTHA-4TS0 | Mfg # QTHA-4TS0
$87.20

Made In The USA

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Make a bubble-tight connection to any Swagelok, Parker, Hoke, Gyrolok or equivalent fractional tube fitting by hand
  • Fits any 1/2" tube fitting
  • Weight: 2.66 oz / 75 grams
  • Length: 1.7 in / 44 mm
  • Width: 1 in / 26 mm
  • Height: 1 in / 26 mm
  • Country of origin: USA
  • Materials: Stainless Steel
  • Max Operating Temperature: 225 °F / 105 °C
  • Max Pressure: 5000 PSI / 350 bar / 35 MPa
  • Min Operating Temperature: 0 °F / -18 °C
  • Seal Materials: Buna-N
  • End 1 Connector: 1/2" Male Tube Fitting
  • End 1 Quick Disconnect: Yes
  • End 1 Direction: Left
  • End 2 Connector: Male Quick-test
  • End 2 Direction: Left

Technical Resources
