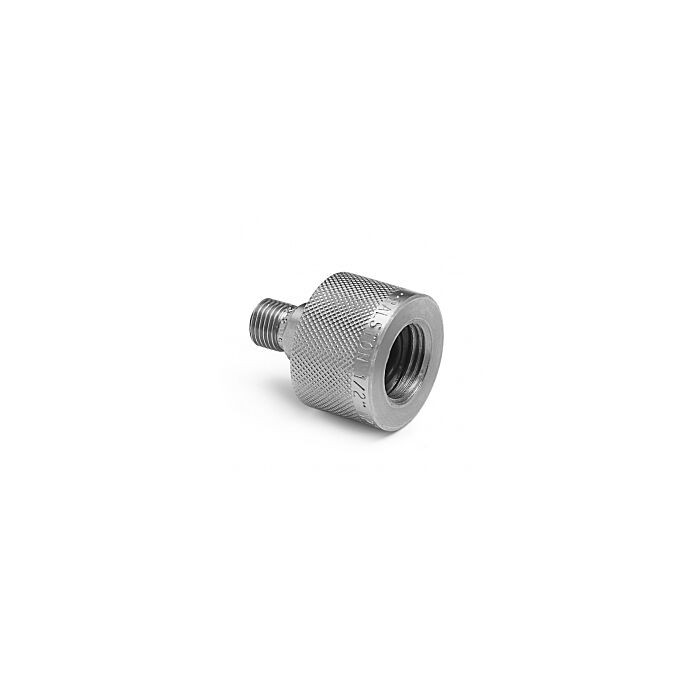

Ralston Instruments QTHA-4FS0-QD 1/2" female NPT quick- disconnect x male QT Adapter
1/2" female NPT quick- disconnect x male QT

Order #: QTHA-4FS0-QD

Mfg #: QTHA-4FS0-QD

Questions about availability or need help? Contact Us:

(800) 633-0561
$95.81

Ralston Instruments QTHA-4FS0-QD 1/2" female NPT quick- disconnect x male QT Adapter

1/2" female NPT quick- disconnect x male QT

Order #: QTHA-4FS0-QD

Mfg #: QTHA-4FS0-QD

Loading...
Print Save Item Compare
$95.81
Register to view exclusive member pricing
Availability:
In stock

 Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

Product Highlights

  • Unique adapters that connect Quick-test hoses to a male NPT pressure gauge or other Male NPT device allow one to connect a hose to a pressure gauge, calibrate it and remove it without a wrench or thread sealant
  • Weight: 5.26 oz / 150 grams
  • Length: 1.69 in / 43 mm
  • Width: 1.39 in / 36 mm
  • Height: 1.39 in / 36 mm
  • Country of origin: USA
  • Materials: Stainless Steel
  • Max Operating Temperature: 225 °F / 105 °C
  • Max Pressure: 5000 PSI / 350 bar / 35 MPa
  • Max Vacuum: 0 InHg / 0.0 kPa
  • Min Operating Temperature: 0 °F / -18 °C
  • Seal Materials: Buna-N, Teflon

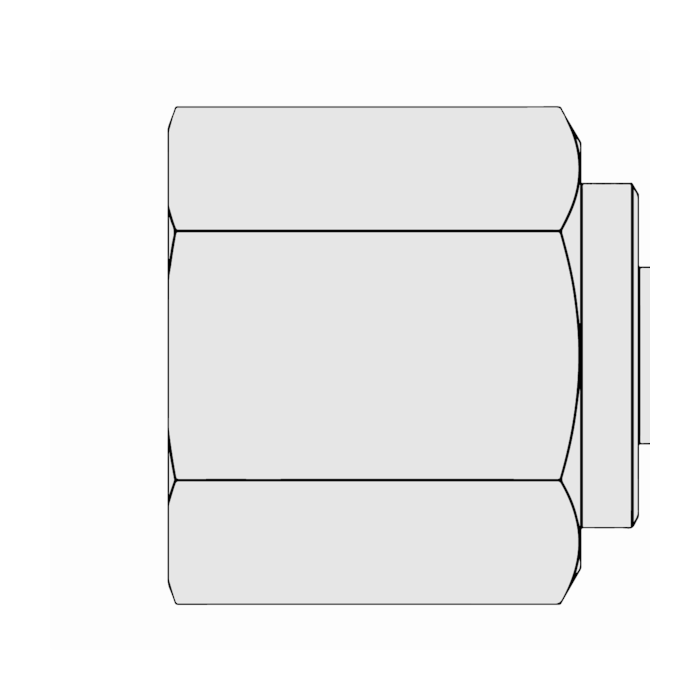

  • End 1 Connector: 1/2" Female NPT (ASME B1.20.1)
  • End 1 Direction: Left

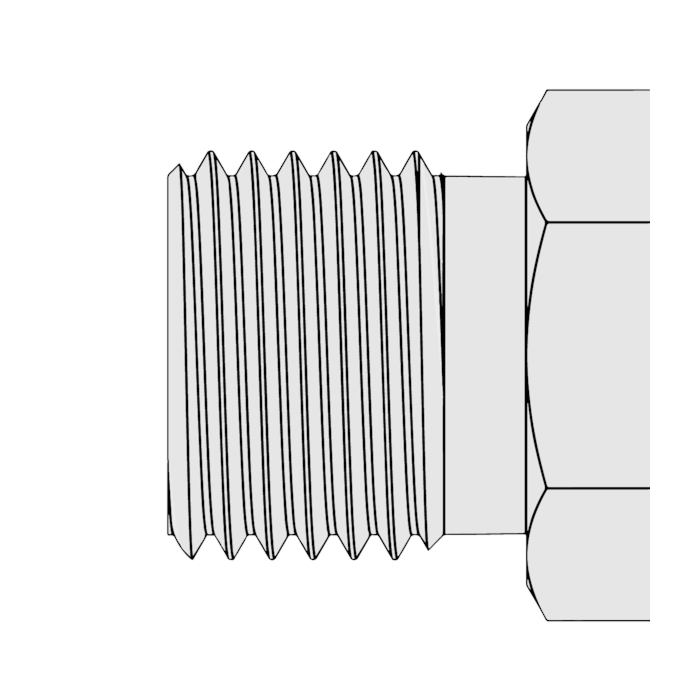

  • End 2 Connector: Male Quick-test
  • End 2 Direction: Left
