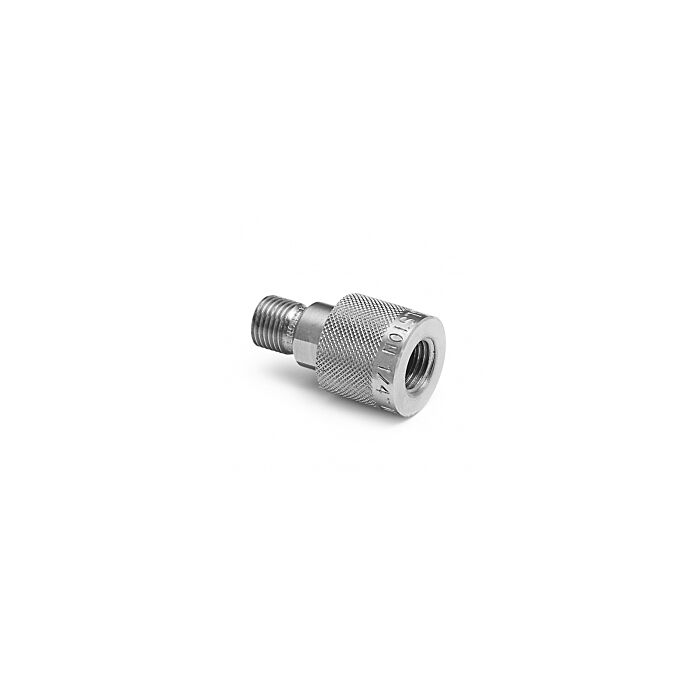

Ralston Instruments QTHA-2FS0-QD 1/4" Female NPT x Male QT, no check-valve, Stainless Steel Adapter

Product Highlights

• Unique adapters that connect Quick-test hoses to a male NPT pressure gauge or other Male NPT device allow one to connect a hose to a pressure gauge, calibrate it and remove it without a wrench or thread sealant
• Weight: 2.61 oz / 74 grams
• Length: 1.67 in / 43 mm
• Width: 0.94 in / 24 mm
• Height: 0.94 in / 24 mm
• Country of origin: USA
• Materials: Stainless Steel
• Max Operating Temperature: 225 °F / 105 °C
• Max Pressure: 5000 PSI / 350 bar / 35 MPa
• Max Vacuum: InHg / 0.0 kPa
• Min Operating Temperature: 0 °F / -18 °C
• Seal Materials: Buna-N, Teflon
• End 1 Connector: 1/4" Female NPT (ASME B1.20.1)
• End 1 Direction: Left
• End 2 Connector: Male Quick-test
• End 2 Direction: Left
