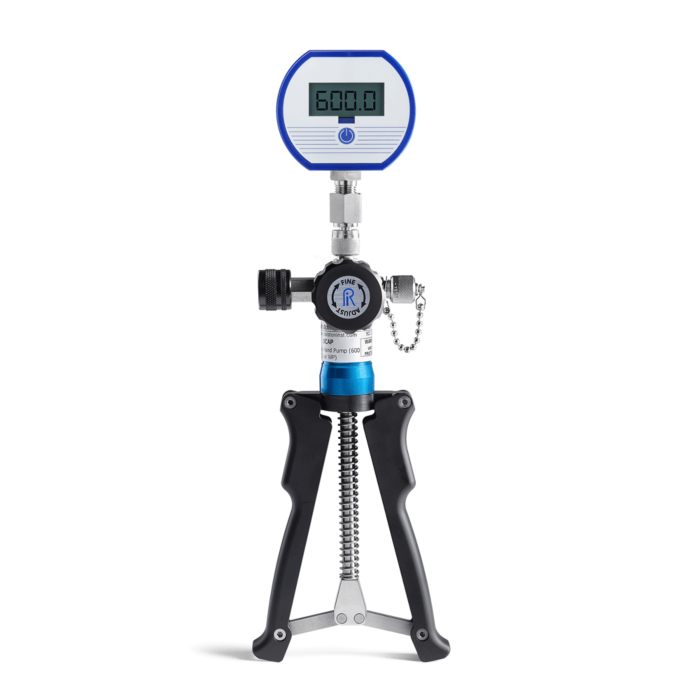

Ralston Instruments DCAP-300PSIG-D Pneumatic Pump, 300 psi Digital Gauge, +/-0.25%

Product Highlights

• Calibrate Pressure Transmitters - Generate Pressure Easily on Both the High and Low Side of a DP Cell Whether it is 50 in H2O or 500 PSI
• Verify Analog or Digital Pressure Gauges - Control Pressure Very Easily Without Leaks which Helps when Calibrating Many Gauges Each Day
• Excellent for Setting Pressure Switchs - Very Precise Fine Adjust Piston on the DCAP Lets the Technician Open or Close a Pressure Switch Easily - Getting the Job Done Faster
• Custody Transfer Flow Computer Calibration in Gas Pipelines - Provides Precise Control of Pressure to Each Side of a Differential Pressure Cell when Calibrating to a Flow Computer
• Quickly and Easily Pump Up to 0-650 PSI (0-45 Bar) Pressure
• Anodized Aluminum Handles for Extra Durability
• Achieve Fine Control of Pressure with Unique Precision Fine Adjust Piston
• Vent Pressure Easily and Accurately with Soft Seat Vent Valve
• 2 Quick-Test Outlet Ports for Both Pressure Reference and Device Under Test Connections
• Made in the U.S.A.

• Each Unit Includes:
• DCAP Hand Pump - DCAP Pneumatic Hand Pump (DCAP)
• Pressure Reference - LC10 pressure gauge, 300 psi / 20 bar / 2 MPa, 1/4" Male NPT bottom connection (LC10-GL2M)
• Hose - Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long (QSQS-HOS-3ft)
• 1/4" Female NPT gauge connection - 1/4" female NPT x female Quick-test, no check-valve, S.S. (QTHA-2FSA)
• 1/4" Male Process Connection - 1/4" male NPT x male Quick-test, no check-valve, S.S. (QTHA-2MS0)
