Overview
Product Highlights

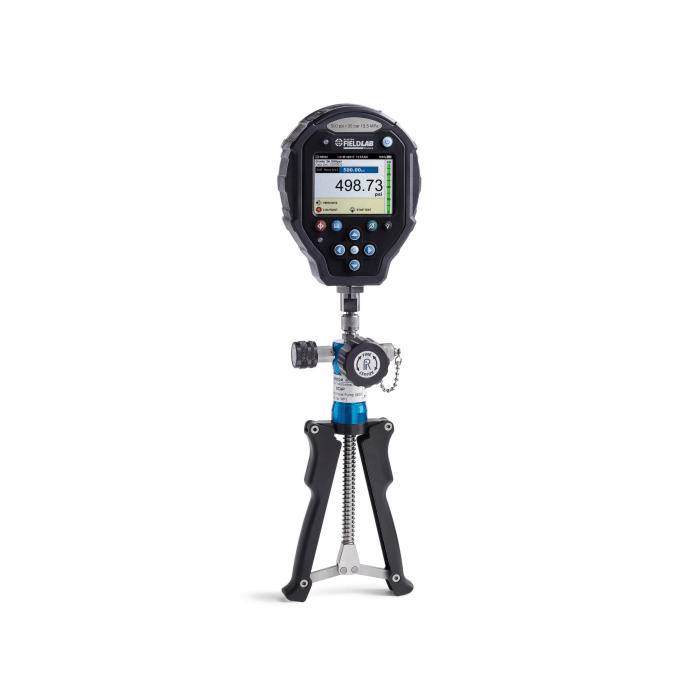

Calibrate Pressure Transmitters - Generate Pressure Easily on Both the High and Low Side of a DP Cell Whether it is 50 in H2O or 500 PSI
Verify Analog or Digital Pressure Gauges - Control Pressure Very Easily Without Leaks which Helps when Calibrating Many Gauges Each Day
Excellent for Setting Pressure Switchs - Very Precise Fine Adjust Piston on the DCAP Lets the Technician Open or Close a Pressure Switch Easily - Getting the Job Done Faster
Custody Transfer Flow Computer Calibration in Gas Pipelines - Provides Precise Control of Pressure to Each Side of a Differential Pressure Cell when Calibrating to a Flow Computer
Quickly and Easily Pump Up to 0-650 PSI (0-45 Bar) Pressure
Anodized Aluminum Handles for Extra Durability
Achieve Fine Control of Pressure with Unique Precision Fine Adjust Piston
Vent Pressure Easily and Accurately with Soft Seat Vent Valve
2 Quick-Test Outlet Ports for Both Pressure Reference and Device Under Test Connections
Hose - Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long (QSQS-HOS-3ft)
1/4" Male Process Connection - 1/4" male NPT x male Quick-test, no check-valve, S.S. (QTHA-2MS0)
Specifications
Weight
4.40 lb / 2.00 kg
Length
3.53 in / 8.97 cm
Width
6.00 in / 15.24 cm
Height
1 ft 5 in / 44.45 cm
Burst Pressure
27,000 psi / 1,862 bar / 185 MPa
Certifications
Certified to CSA Standard C22.2 No. 61010-1 Conforms to UL Standard No. 61010-1 North America - Class 1 Division 1 Groups A-D, T4, (-10 < Ta < 50°C) ATEX - Ex II 1 G Ex ia IIC T4 Ga (-10 < Ta < 50 °C) IECEx - Ex ia IIC T4 Ga (-10 < Ta < 50 °C)
Charging
AC Power (Australia, China, Europe, North America, UK adapters included) DC Auto power (Optional)
Color
Silver
Datalogging
2 million points
Fine Adjustment Resolution
.001 PSI
Fluid Media
Air, Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose 1
Quick-test Hose, Stainless Steel ends, 3ft / 0.9m long
Ingress Protection
IP67 (1 meter water submersion for 30 minutes)
Inner Diameter
0.08 in / 0.20 cm
LCD Display
3.5 in / 90mm Color TFT LCD Display
Length
3 ft / 91.44 cm
Materials
Anodized Aluminum Stainless Steel
Max Pressure
650 psi / 45 bar / 4.48 MPa
Max Storage Temperature
167 °F / 75 °C
Max Temperature
130 °F / 54 °C
Measurement Type
Gauge Pressure
Media Compatibility
Air Inert Gas Natural Gas Petroleum Based Oil Water
Min Storage Temperature
-20 °F / -29 °C
Minimum Bend Radius
1.00 in / 2.54 cm
Mounting Holes
3 x M5 Inserts (10 mm deep)
Outer Diameter
0.20 in / 0.51 cm
Outlet Port
Male Quick-test Male Quick-test with cap and chain
Pressure Measurement Uncertainty
+/- 0.02% of Full Scale (0-20% of Full Scale) +/- 0.1% of Reading (20-100% of Full Scale) +/- 0.25% of Full Scale (Vacuum)
