Ralston Instruments DP0V-100PSIG-D

DP0V, 100 PSIG Dig. Gauge Pressure Calibration Kit

Order #: DP0V-100PSIG-D

Mfg #: DP0V-100PSIG-D

Questions about availability or need help? Contact Us:

(800) 633-0561
$699.80

Ralston Instruments DP0V-100PSIG-D

DP0V, 100 PSIG Dig. Gauge Pressure Calibration Kit

Order #: DP0V-100PSIG-D

Mfg #: DP0V-100PSIG-D

$699.80
Availability: Item ships in about 2 - 3 Weeks
Available Promotions

Choose Your Options:

Add Accredited Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate?

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Pump and pressure gauge combination includes everything needed to perform accurate, precise low pressure calibrations

  • 100PSIG
  • Light weight, compact pump generates up to 125 psi (8.6 bar) with ease
  • Large volume fine adjustment piston provides precise control, even at very low pressures
  • Modular design makes field maintenance quick and easy
  • Precisely vent pressure with soft seated bleed valve
  • Two outlet ports provide connections for both pressure reference and for device under test thus eliminating a tee
  • Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
  • Rugged, all metal construction reduces pressure changes due to temperature fluctuations
  • Made in U.S.A.

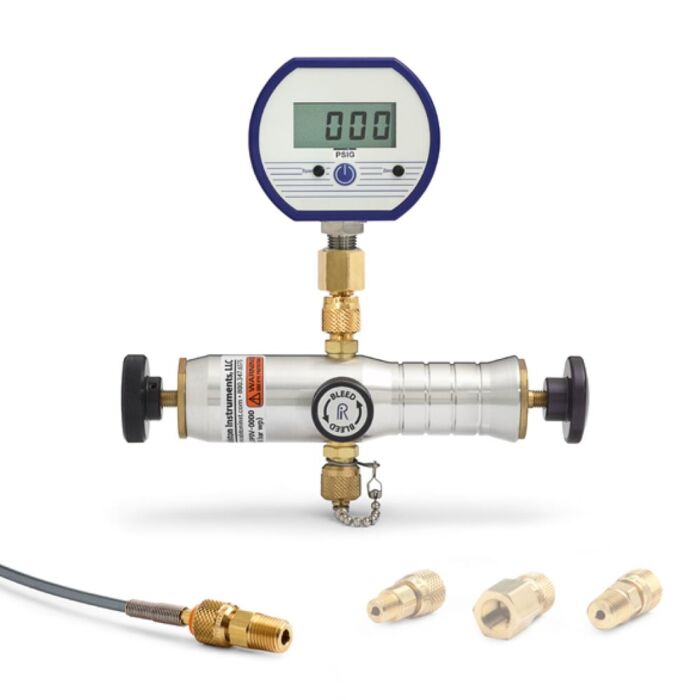

Each Unit Includes

  • Hand Pump - DP0V Assembly (DP0V)
  • Hose - Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
  • Process Connection 1 - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
  • Gauge Swivel - 1/4" female NPT x female Quick-test, no check-valve, brass (QTHA-2FBA)
  • Gauge - 0-100 psig Digital Pressure Gauge (±0.25% full scale accuracy) (GAUD-0100)
