Product Highlights

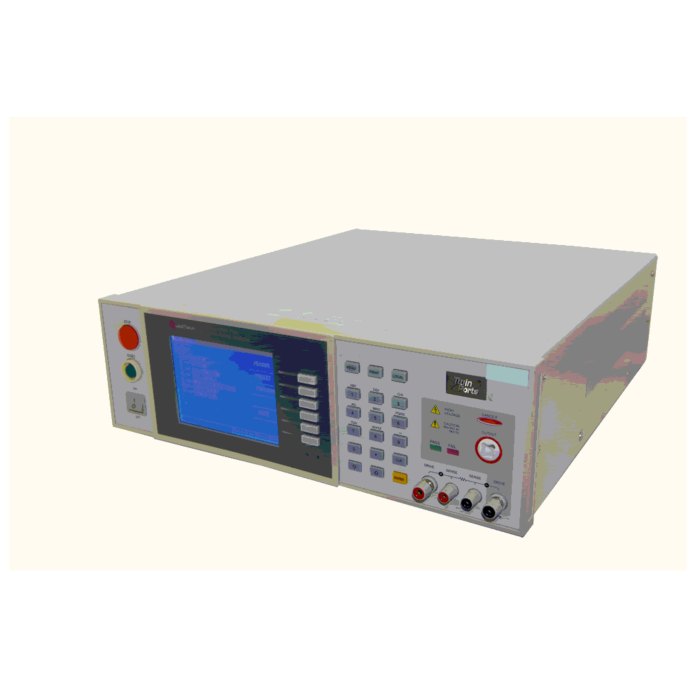

The Quadtech Guardian 6100 Plus is the industry's first production safety analyzer with simultaneous Hipot and Ground Bond capability providing a dramatic savings in test time. Six instruments in one, the Guardian 6100 Plus provides AC Hipot, DC Hipot, Insulation Resistance, Leakage Current / Functional Run, Ground Bond and Open / Short measurements from a single test connection. Versatile and packed with features, the Guardian 6100 Plus is a cost effective solution for the full spectrum of electrical safety compliance testing.
- Twin Port - Simultaneous Hipot & GB
- Built-in 20A Hipot/Line Leakage Scanner
- Output Voltage to 5 kV AC and 6kV DC
- Ground Bond Testing to 30A AC (to 40A with Optional Transformer)
- Insulation Resistance Measurements from 100 kohms to 50 Gohms
- Earth, Enclosure & Patient Line Leakage Current Measurements to 9.999 mA
- Open/Short Circuit Detection Mode
- Pause Mode with Message Capability
- Continuous Leakage Current Monitoring
- Programmable Trip Current to 40 mA AC and 12 mA DC
- Programmable Ramp, Dwell & Test Times
- Storage of 100 Test Setups, 50 Steps Each
- Front Panel Lockout via Password
- Standard RS-232 & Remote I/O Interfaces
- Optional IEEE-488, Printer Interfaces
- Optional CaptivATE Automation Software for Guardian 6100 Plus
