Panametrics PT900 Portable Ultrasonic Flow Meter for Liquids

Order # PT9-SYS | Mfg # PT9-SYS

Panametrics PT900 Portable Ultrasonic Flowmeter

$9,200.00

In stock

Ships Free Over $100

The TransPort PT900 is the latest generation of portable clamp-on fow meter from Panametrics line of ultrasonic meters. It capitalizes on the ruggedness and superior performance of its predecessor, the TransPort PT878, but delivers a whole new level of intuitive and user-friendly capability based on today's technology.

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The PT900 maintains the same high performance as the PT878, but features a total redesign of the fl ow transmitter, clamping fixture and user interface. Key improvements include a redesigned fixture and a streamlined user interface on an Android tablet.

Why Buy the PT900 from Transcat? Inventory. Selection. Price.

Request a Quote

TransPort PT900 Makes Your Job So Much Easier

The PT900 has undergone the most involved voice of the user effort to date for GE’s flow products. Several years of learning about how people use portable flow meters and what they want and need while making flow rate measurements have influenced the PT900’s design. GE validated this learning and modified the design approach by sharing initial concepts and early prototypes with users. The result? The best portable flow meter needs to be versatile, easy to install, intuitive to use and capable of making reliable measurements even in the most difficult applications.


Operation and Performance Fluid Types Liquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles Flow Measurement Patented Correlation Transit-TimeTM mode Pipe Sizes Standard: 0.5 to 24 in. (15 to 600 mm) Optional: up to 300 in. (7500 mm) available upon request Pipe Wall Thickness Up to 3 in. (76.2 mm) Pipe Material All metals and most plastics Accuracy ±1% of reading (2in/50mm or greater pipe sizes) ±2% of reading (0.5in/15mm to <2in/50mm pipe sizes) Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors. Repeatability ±0.2% of reading Range (Bidirectional) 0.1 to 40 ft/s (0.03 to 12.19 m/s) Response Time Up to 2 Hz Measurement Parameters Velocity, Volume, Mass, Energy, Total Flow Channels 1 or 2 channels		Flow Transmitter Enclosure IP65 rating Specifications Weight: 3 lb (1.4 kg) Size (h x w x md): 7.9 x 4.3 x 1.5 in. (200 x 109 x 38 mm) Mounting: Soft strap around pipe or magnetic clamp Analog Inputs 4-20 mA (qty 2) Analog Output 4-20 mA (qty 1) Digital Output Pulse (Totalizer), Frequency, Alarm (qty 1) Digital Communication Modbus via RS485 Port Bluetooth Wireless Micro-USB Port Battery Type: Lithium Ion (high-energy, rechargeable) Life (continuous operation): 18-20 hours Life (power saver mode): >4 days Charger: 100 to 240 VAC (50/60/Hz) Charging Time: Up to 3 hours (from 0% to 100%) Operating Temperature -20 to 55°C (-4 to 131°F) Electronics Classifications CE (EMC Directive) IEC 61326-1:2013, IEC 61326-2-3:2013, LVD 2006/95/EC, EN 61010-1 2010 ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2 NO. 61010-1 WEEE Compliant (Directive 2012/19/EU) RoHS Compliant (Directive 2002/95/EC)

User Interface Display Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution Dimensions 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical Battery Life >12 hours of continuous use Battery Charger 100 to 250 VAC (50/60 Hz) Operating Temperature 0 to 50°C (32 to 122°F) Communication with Flow Transmitter Bluetooth		Software Application (PT900 APP) Intuitive, Swipe Screen Interface Colorful, icon-driven design Tutorial-style programming Site parameter presets Multiple display options Extensive online help Languages English, Arabic, Chinese (Simplified), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish Installing the PT900 APP Obtain the PT900 APP from: File provided on SD card Free download from Google Play Free download from GE website

Technical Resources

Panametrics TransPort PT900 Portable Ultrasonic Flow Meter Datasheet
Panametrics Transport PT900 Flow Meter Quick Start Guide

Specifications

Accuracy±1% of reading (2in/50mm or greater pipe sizes)
±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)
Installation assumes a fully developed, symmetrical flow profi le (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fl uid, temperature range, pipe centricity among other factors.

TransPort PT900 Specifications
Operation and Performance
Fluid Types	Liquids: acoustically conductive fl uids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles
Flow Measurement	Patented Correlation Transit-Time™ mode
Pipe Sizes	Standard: 0.5 to 24 in. (15 to 600 mm) Optional: up to 300 in. (7500 mm) available upon request
Pipe Wall Thickness	Up to 3 in. (76.2 mm)
Pipe Material	All metals and most plastics
Repeatability	±0.2% of reading
Range (Bidirectional)	0.1 to 40 ft/s (0.03 to 12.19 m/s)
Response Time	Up to 2 Hz
Measurement Parameters	Velocity, Volume, Mass, Energy, Total Flow
Channels	1 or 2 channels

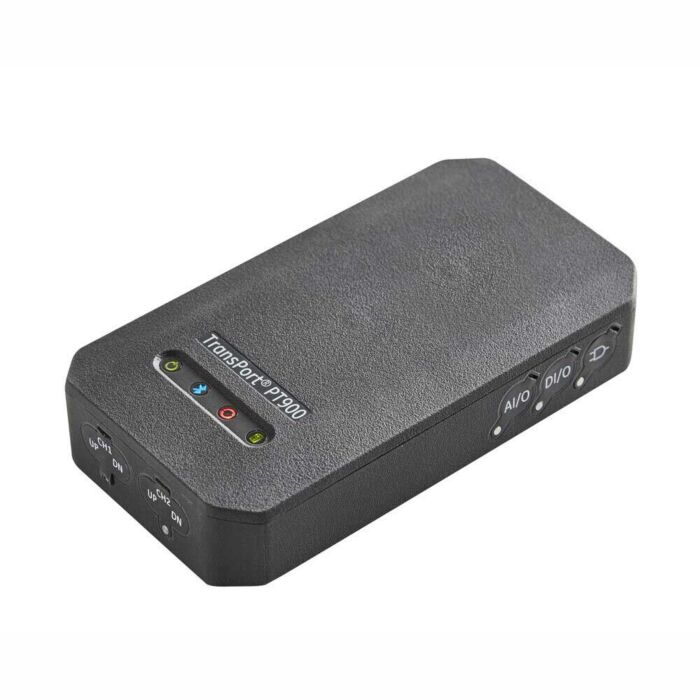

Flow Transmitter
Enclosure	IP65 rating
Specifications	Weight: 3 lb (1.4 kg) Size (h x w x md): 7.9 x 4.3 x 1.5 in. (200 x 109 x 38 mm) Mounting: Soft strap around pipe or magnetic clamp±0.45°C /±0.81°F
Analog Inputs	4-20 mA (qty 2)
Analog Output	4-20 mA (qty 1)
Digital Output	Pulse (Totalizer), Frequency, Alarm (qty 1)
Digital Communication	Modbus via RS485 Port Bluetooth® Wireless Micro-USB Port
Battery	Type: Lithium Ion (high-energy, rechargeable) Life (continuous operation): 18-20 hours Life (power saver mode): >4 days Charger: 100 to 240 VAC (50/60/Hz) Charging Time: Up to 3 hours (from 0% to 100%)
Operating Temperature	-20 to 55°C (-4 to 131°F)
Electronics Classifi cations	CE (EMC Directive) IEC 61326-1:2013, IEC 61326-2-3:2013, LVD 2006/95/EC, EN 61010-1 2010 ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2 NO. 61010-1 WEEE Compliant (Directive 2012/19/EU) RoHS Compliant (Directive 2002/95/EC)
User Interface
Display	Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution
Dimensions	7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical
Battery Life	>12 hours of continuous use
Battery Charger	100 to 250 VAC (50/60 Hz)
Operating Temperature	0 to 50°C (32 to 122°F)
Communication with Flow Transmitter	Bluetooth®
Software Application (PT900 APP)
Intuitive, Swipe Screen Interface	Colorful, icon-driven design Tutorial-style programming Site parameter presets Multiple display options Extensive online help
Installing the PT900 APP	Obtain the PT900 APP from: File provided on SD card Free download from Google Play Free download from GE website
Languages	English, Arabic, Chinese (Simplifi ed), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish
Clamp-On Transducers
Temperature Range*	Standard: -40 to 302°F (-40 to 150°C) Optional: -328 to 752°F (-200 to 400°C) *See individual transducer model specifi cations for exact temperature range

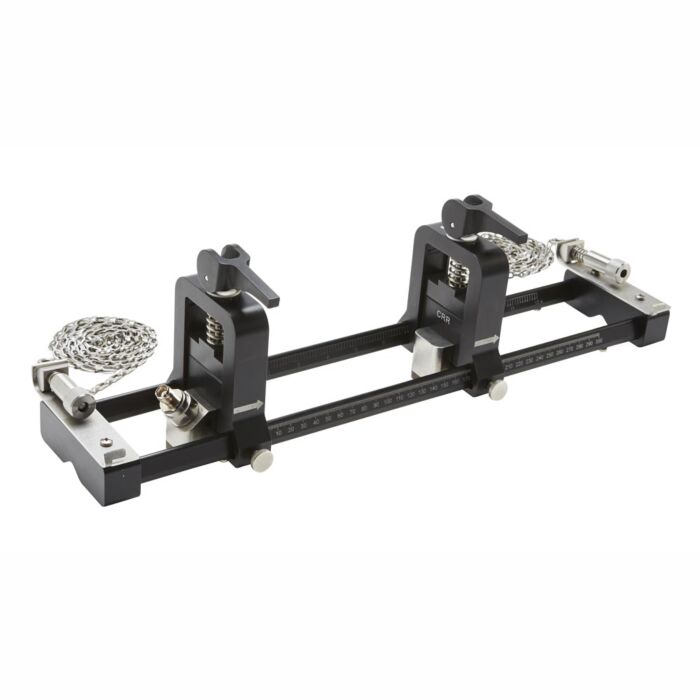

Mounting	New PT clamping fi xture for pipes ≥2 in. (50 mm) CF-LP clamping fi xture for 1/2 in. (15 mm) to 2 in. (50 mm) pipes
PT9 Transducer Cables	Standard Length: 25 ft (8 m) of RG316 coaxial cable Maximum Length: 100 ft (30 m) of RG316 coaxial cable Temperature Range: -40° to 302°F (-40° to 150&#1`76;C)
