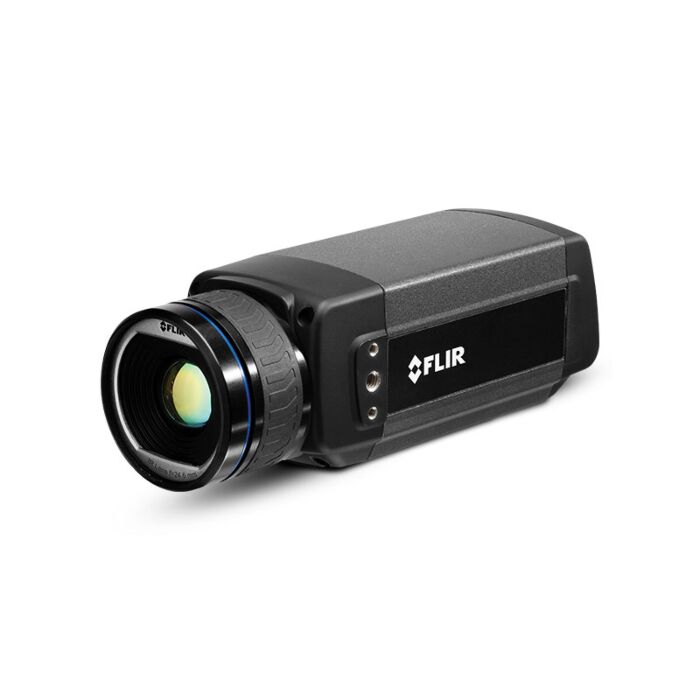

| Digital I/O connector type |
6-pole jackable screw terminal |
| Digital Inputs |
2 opto-isolated, 10-30 VDC |
| Digital Output Purpose |
Output to ext. device (programmatically set) |
| Digital Outputs |
2 opto-isolated, 10-30 VDC, max 100 mA |
| EMC |
EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission) |
| f-number |
1.0 |
| Image Frequency |
50 Hz (100/200 Hz with windowing) |
| Thermal Sensitivity/NETD |
< 0.05°C @ +30°C (86°F) / 50 mK |
| Accuracy |
±2°C or ±2% of reading |
| Communication & Data Storage |
|
| Digital I/O connector type |
6-pole jackable screw terminal |
| Digital I/O isolation voltage |
500 VRMS |
| Digital I/O supply voltage |
12/24 VDC, max 200 mA |
| Digital input purpose |
Image tag (start, stop, general), Image flow ctrl. (Stream on/off), Input ext. device (programmatically read) |
| Digital Inputs |
2 opto-isolated, 10-30 VDC |
| Digital Output Purpose |
Output to ext. device (programmatically set) |
| Digital Outputs |
2 opto-isolated, 10-30 VDC, max 100 mA |
| Ethernet |
Control and image |
| Ethernet Communication |
TCP/IP socket-based FLIR proprietary and GenICam protocol |
| Ethernet Connector Type |
RJ-45 |
| Ethernet Image Streaming |
16-bit 640 x 480 pixels at 50 Hz, 16-bit 640 x 240 pixels at 100 Hz, 16-bit 640 x 120 pixels at 200 Hz (Signal linear, Temperature linear, Radiometric GigE Vision and GenICam compatible) |
| Ethernet Protocols |
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| Ethernet Standard |
IEEE 802.3 |
| Ethernet Type |
Gigabit Ethernet |
| USB |
Control and image |
| USB - Communication |
TCP/IP socket-based FLIR proprietary |
| USB - Connector Type |
USB Mini-B |
| USB - Image Streaming |
16-bit 640 x 480 |
| USB - Protocols |
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| USB - Standard |
USB 2 HS |
| Imaging & Optical |
|
| Camera size excl lens (L x W x H) |
203 x 73 x 75 mm (8.0 x 2.9 x 3.0 in.) |
| Detector Pitch |
17 µm |
| Detector Time Constant |
Typical 8 ms |
| Field of view (FOV) |
15° x 11° (19° diagonal) |
| FLIR Screen-EST Mode |
No |
| f-number |
1.0 |
| Focal Length |
41.3 mm (1.63 in.) |
| Focus |
Automatic or manual (built in motor) |
| Image Frequency |
50 Hz (100/200 Hz with windowing) |
| IR Resolution |
640 x 480 pixels |
| Lens Identification |
Automatic |
| Minimum Focus Distance |
0.50 m (1.64 ft.) |
| Spatial resolution (IFOV) |
0.41 mrad |
| Thermal Sensitivity/NETD |
< 0.05°C @ +30°C (86°F) / 50 mK |
| Measurement & Analysis |
|
| Accuracy |
±2°C or ±2% of reading |
| Atmospheric transmission correction |
Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Camera size (L x W x H) |
222 x 73 x 75 mm (8.7 x 2.9 x 3.0 in.) |
| Emissivity Correction |
Variable from 0.01 to 1.0 |
| External Optics & Windows Correction |
Automatic, based on input of optics/window transmission and temperature |
| Measurement Corrections |
Global object parameters |
| Object Temperature Range |
-20 to +150°C +100 to +650°C +300 to +2000°C |
| Optics Transmission Correction |
Automatic, based on signals from internal sensors |
| Reflected apparent temperature correction |
Automatic, based on input of reflected temperature |
| General |
|
| Contents |
Hard transport case or cardboard box, Thermal imaging camera with lens, Utility CD-ROM, Calibration certificate, Ethernet™ cable, USB cable (FLIR A615), Mains cable, Power cable (pig-tailed), Power supply, Printed Getting Started Guide, Printed Important Information Guide, User documentation CD-ROM, 6-pole screw terminal (mounted on camera) |
| Housing material |
Aluminium |
| Packaging Size |
360 x 180 x 550 mm (14.2 x 7.1 x 21.7 in.) |
| Environmental & Certifications |
|
| EMC |
EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission) |
| Encapsulation |
IP 30 (IEC 60529) |
| Humidity (Operating and Storage) |
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (77 to 104°F) |
| Operating Temperature Range |
-15°C to +50°C (+5°F to +122°F) |
| Shock |
25 g (IEC 60068-2-27) |
| Storage Temperature Range |
-40°C to +70°C (-40 to 158°F) |
| Vibration |
2 g (IEC 60068-2-6) |
| Power |
|
| External Power Connector Type |
2-pole jackable screw terminal |
| External Power Operation |
12/24 VDC, 24 W absolute max |
| Voltage |
Allowed range 10-30 VDC |
