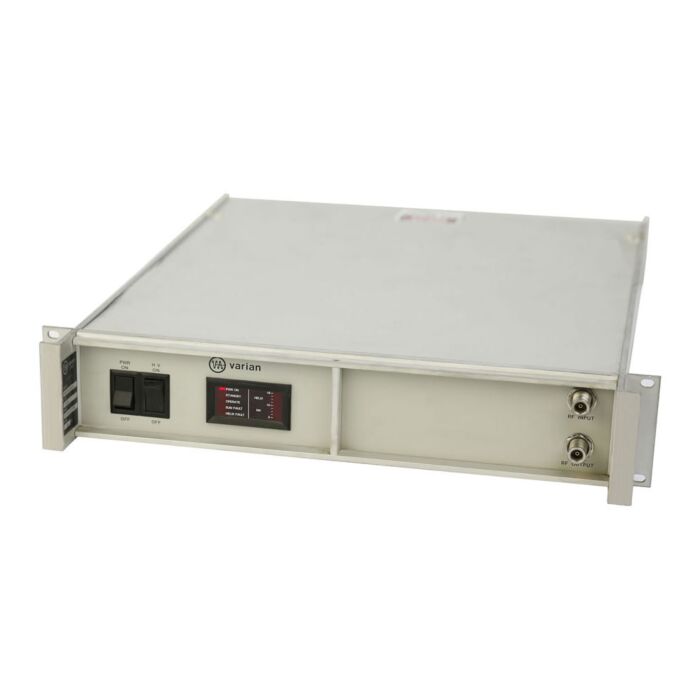

Used Varian VZL-6941K1 TWT Amplifier, 1-2GHz, 10W, 35dB Gain
Order #
VZL-6941K1-USED
|
Mfg #
VZL-6941K1-USED
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Specifications
| Power |
20 Watts |
| Frequency |
1.0 GHz to 2.0 GHz |
| Gain |
40 dB |
| O/P Conn. |
N |
| Impedance |
50 ohms nominal |
| VSWR |
Input: |
2.0:1 typical |
| Output: |
2.0:1 typical |
| Load |
1.3:1 max. for full spec compliance. 2.0:1 mas for no damage |
| Noise & Spurious |
-50 dBc typical excluding harmonics and residual modulation |
| Residual AM |
-40 dBc |
| Residual FM |
Less than 4 kHz peak-to-peak in any 5 MHz band |
| AM/PM Conversion |
2.5 /dB typical at 6 dB below rated output |
| Noise Figure |
35 dB max. for L-Band and above |
| Harmonic Content |
-3 dBc at lower band edge decreasing to -15 dBc (typical) at upper band edge without optional harmonic filter. -20 dBc for P-Band models |
| Dimension |
3.5 x 19 x 19.25 inches L-Band and above 7 x 19 x 18.1 inches P-band models |
