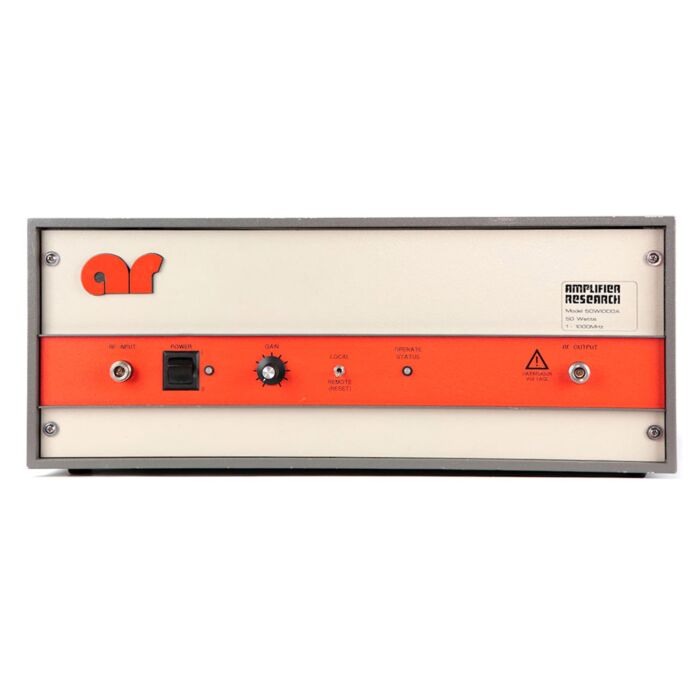

Used Amplifier Research 50W1000A Broadband RF Power Amplifier, 1MHz to 1GHz, 50W
Order #
50W1000A-USED
|
Mfg #
50W1000A
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Overview
Product Highlights
- Power Output, cw:
- Typical: 70W
- Minimum: 50W
- Linear: 40W minimum
- Flatness:
- Maximum: ± 1.5 dB
- Typical: ± 1.0 dB
- Frequency Response (instantaneous): 1 to 1000 MHz
- Input for Rated Output: 1.0 mW maximum
- Power Gain: 47 dB minimum
- Gain Control: 20 dB minimum
- Input Impedance: 50 ohms; VSWR 2.0:1 max.
- Output Impedance: 50 ohms nominal
- Class of Operation: A
- RF Connectors: Type N female
- Weight: 57 lbs (25.9 kg)
