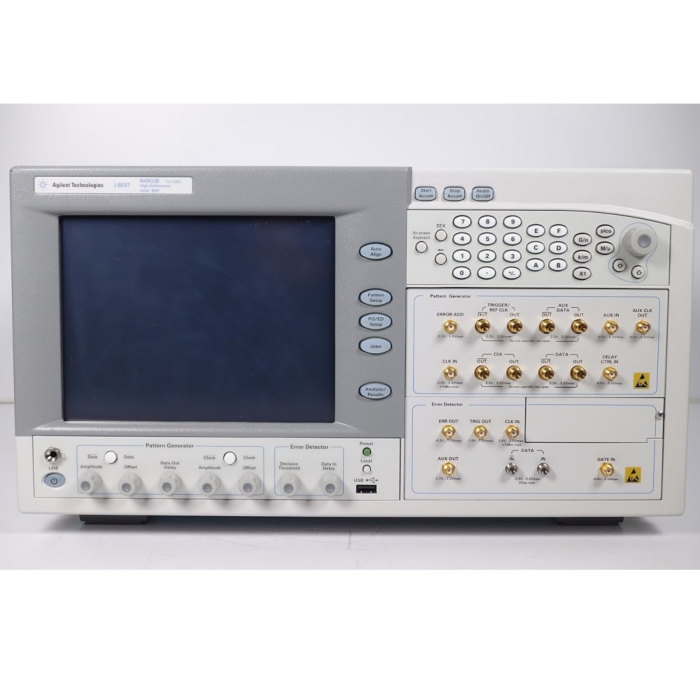

Keysight / Agilent N4903B USED FOR SALE

High-Performance 12.5Gb/s Error Performance Analyzer,J-BERT

Order #: N4903B-USED

Mfg #: N4903B

Questions about availability or need help? Contact Us:

(800) 633-0561
$19,499.00

Keysight / Agilent N4903B USED FOR SALE

High-Performance 12.5Gb/s Error Performance Analyzer,J-BERT

Order #: N4903B-USED

Mfg #: N4903B

$19,499.00

Used instruments from TranscatTranscat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability: Call for Availability
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Key Features & Specifications

  • Data rates 150 Mb/s to 7 Gb/s or to 12.5 Gb/s pattern generator and error detector. Option to extended data rate to 14.2 Gb/s for pattern generator.
  • >0.5 UI calibrated, compliant and integrated jitter injection: RJ, RJ-LF, RJ-HF, PJ1, PJ2, SJ, BUJ, ISI, sinusoidal interference, triangular and arbitrary SSC and residual SSC
  • Excellent signal performance and sensitivity
  • Built-in clock data recovery with tunable and compliant loop bandwidth
  • Half-rate clocking with variable duty cycle for forwarded clocked devices
  • Measures BER, BERT Scan, TJ with RJ/DJ separation, eye diagram, eye mask, BER contour, automated jitter tolerance, pattern capture, frame error rate (FER), or symbol error rate (SER) coded and retimed data streams
  • Two adjustable data outputs with independent PRBS and pattern with 120 block pattern sequencer
  • All options are retrofittable and upgrade from N4903A possible

Description

The J-BERT N4903B high-performance serial BERT provides the most complete jitter tolerance test for embedded and forward clocked devices.

It is the ideal choice for R&D and validation teams characterizing and stressing chips and transceiver modules that have serial I/O ports up to 7 Gb/s, 12.5Gb/s or 14.2 Gb/s. It can characterize a receiver’s jitter tolerance and is designed to prove compliance to today’s most popular serial bus standards, such as:

  • PCI Express®
  • SATA/SAS
  • DisplayPort
  • USB SuperSpeed
  • Fibre Channel
  • QPI
  • Memory buses, such as fully buffered DIMM2
  • Backplanes, such as CEI
  • 10 GbE/ XAUI
  • XFP/XFI, SFP+
