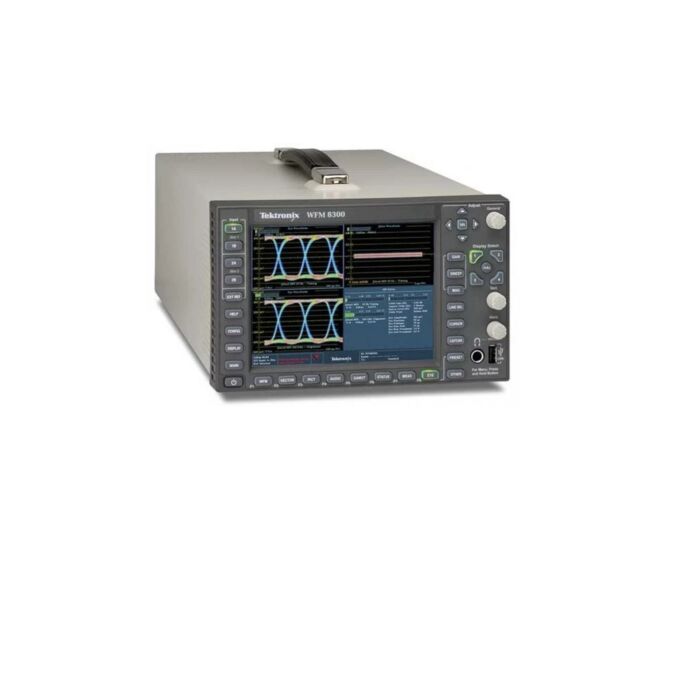

Tektronix WFM8300 Used for Sale

Advanced Analog /SD/HD/3G-SDI Waveform Monitor

Order #: WFM8300-USED

Mfg #: WFM8300

Questions about availability or need help? Contact Us:

(800) 633-0561
$9,999.00

Tektronix WFM8300 Used for Sale

Advanced Analog /SD/HD/3G-SDI Waveform Monitor

Order #: WFM8300-USED

Mfg #: WFM8300

$9,999.00

Used instruments from TranscatTranscat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability:
In stock
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

This video/audio/data monitor and analyzer all-in-one platform provides flexible options and field installable upgrades to monitor a diverse variety of video and audio formats. Support for video formats includes 4K/UHDTV1 (4096×2160 and 3840×2160), 3G-SDI, Dual Link, HD-SDI and composite analog. Support for audio formats includes Dolby E, Dolby Digital Plus, Dolby Digital, AES/EBU, embedded audio and analog audio.

Key features
  • Video/audio/data monitor and analyzer – all-in-one platform
    • WVR8300 and WVR8200 come standard with auto-detection of HD/SD-SDI and multiple Dual Link video formats
    • Square Division and 2-Sample Interleave 4K/UHDTV1 format support (requires Options 4K, 3G and 2SDI)
    • Optional capabilities include 3G-SDI (Level A and Level B) formats support (Option 3G), composite analog video support (Option CPS), as well as analog and digital audio (Option AD) and Dolby E, Dolby Digital Plus, and Dolby Digital audio (Option DPE) decoding and monitoring
    • WVR8300 also comes standard with Simultaneous Input Monitoring capability, ANC Data Inspector, and numerical/graphical display of A/V delay for analog, digital audio (Option AD), and Dolby (Option DPE)
    • Multiple Input Mode allows monitoring of 2 to 4 SDI inputs simultaneously (4-input mode requires Option 2SDI)
  • Superior physical layer signal integrity analyzer
    • Most accurate 3G-SDI jitter waveform display and eye pattern display in the waveform series and patented cable length measurement (WVR8300 Option PHY with Option 3G or WVR8200 Option PHY3 with Option 3G)
    • Most comprehensive eye pattern measurements including eye amplitude, rise/fall time, and overshoot/undershoot measurements as well as Tektronix jitter waveform display (WVR8300 Option PHY or WVR8200 Option PHY3)
    • Field-upgradeable HD/SD-SDI eye pattern input module to full 3G/HD/SD-SDI support with the purchase of an upgrade key (WVR830UP Option 3G or WVR820UP Option 3G)
  • Black picture and Tektronix-patented frozen picture detection (3G/HD/SD-SDI formats)
  • Tektronix-patented Timing display with inter-channel timing of Quad Link signals in 4K mode
  • HDR graticules and HDR zebra overlay for HDR content creation (Option PROD)
  • Tektronix-patented Spearhead display and Luma Qualified Vector (LQV™) display facilitate precise color adjustment for post production applications (Option PROD)
  • Tektronix patented Diamond and Arrowhead displays for gamut monitoring
  • Colorimetry support for ITU-R BT.2020 (4K/UHDTV1) or ITU-R BT.⁠709 (HD) colorspaces within the waveform, vector, and gamut displays
  • Most comprehensive audio monitoring (Option AD or DPE)
    • Multichannel Surround Sound 1 display and flexible Lissajous display with audio level readouts
    • Audio Loudness monitoring to ITU-R BS.1770-3 with audio trigger start/stop functions via GPI or Timecode (Option AD or DPE)
    • Comprehensive Dolby metadata decode and display (Option DPE)
    • Dolby E Guard Band meter with user-defined limits (Option DPE)
  • Most comprehensive ANC data monitoring
    • Simultaneous CEA708/608 Closed Caption, ARIB STD-B37 Closed Caption, Teletext, SMPTE 2031, and OP47 subtitle decode and monitoring
    • Detect and decode ANC data including AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC, and ANC TC
    • ARIB STD-B35/B37/B39, TR-B22, and TR-B23 support
  • Most in-depth digital data analysis helps quickly resolve difficult content quality and reliability issues (standard WVR8300 or WVR8200 with Option DAT)
  • Unmatched display versatility
    • FlexVu™, the most flexible four-tile display, tailors to various application needs to increase productivity
    • Standard and user-definable Safe Area Graticules facilitate editing and format conversions tasks, reducing the need for rework
    • Active Format Description (AFD) detect, decode, and automatically adjusted graticule on picture display enable easy identification of aspect-ratio related issues
  • Unmatched usability
    • CaptureVu® advanced video frame data capture simplifies troubleshooting and equipment setup
    • 32 instrument presets for quick recall of commonly used configurations tailored to engineers or operators
    • Front-panel USB port enables easy transfer of presets, captured video frame data, screenshots, and error log
    • Front-panel headphone port enables quick verification of selected audio pair
    • Intuitive menu structure and context-sensitive help
    • Extensive alarms, status reporting, and error logging
    • SNMP and Ethernet remote interface capabilities and GPI control facilitate centralized monitoring and contro
