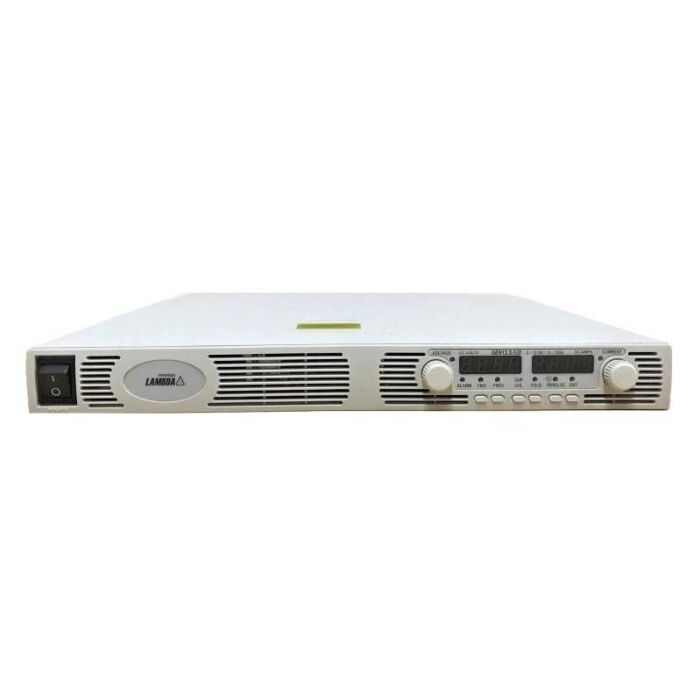

The Genesys family of programmable power supplies are flexible, reliable, AC/DC power systems in OEM, Industrial and Laboratory applications. TDK-Lambda GEN12.5-120 is a programmable power supply with high power density in 1U. This power supply features high power density, low ripple & noise, built-in RS-232/RS-485 interface with optional user-friendly interfaces. Parallel operation with active current sharing allows up to four identical units to be connected in an auto-parallel configuration for four times the output power, increasing the flexibility for system designers.
GEN12.5-120 Genesys Power Supply has been designed to meet the demands of a wide variety of applications. A user-friendly front panel provides reliable control through encoders selectable for fine or course adjustment (~6 or 30 turns) and four-digit LED voltage and current meters. In Advanced Parallel Master/Slave Mode, total current is programmed and reported by the master, up to four supplies act as one. It also features Active Power Factor Correction of 0.99 at full load, a first in this size and density. This assures operation in difficult AC environments and meets European EMC requirements. Significant safety features include Safe Re-Start and Last Setting Memory. Front panel controls also include output On/Off and Local/Remote digital selection. The front panel may be locked locally or by software command.
- Input: Single-phase
- Input Voltage Range: (AC): 85 to 265Vac
- Input Frequency Range: 47 to 63Hz
- Rated Output Voltage (DC): 12.5Vdc
- Output Voltage (DC): 0 to 12.5Vdc
- Rated Output Current: 120A
- Output Current: 0 to 120A
- Rated Output Power: 1500W
- Efficiency: 85% Typ.
- Voltage Ripple Noise: 0.008Vrms (5Hz to 1MHz)
- Current Ripple Noise: 0.24Arms (5Hz to 1MHz)
