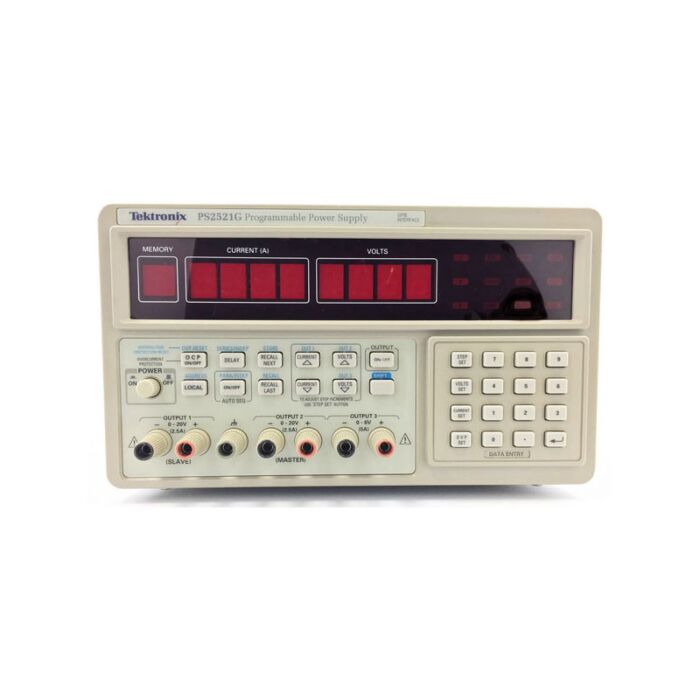

Used Tektronix PS2521G Programmable Power Supply Triple Output, 20V/2.5A/130W
Programmable Power Supply Triple Output,20V/2.5A/130W

Order #: PS2521G-USED

Mfg #: PS2521G-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$899.00

Used Tektronix PS2521G Programmable Power Supply Triple Output, 20V/2.5A/130W

Programmable Power Supply Triple Output,20V/2.5A/130W

Order #: PS2521G-USED

Mfg #: PS2521G-USED

$899.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

PS2520G

  • Triple Output
  • One 0 to 6 V, 0 to 3 A
  • Two 0 to 36 V, 0 to 1.5 A
  • Digital LED Output Indicator
  • SCPI Compatible

PS2521G

  • Triple Output
  • One 0 to 6 V, 0 to 5 A
  • Two 0 to 20 V, 0 to 2.5 A
  • Digital LED Output Indicator
  • SCPI Compatible

Applications

  • Training
  • Manufacturing Production Test
  • Field Repair
  • Bench Calibration and Repair
  • Product Design
  • Laboratory and Research
  • Education

PS2520G/PS2521G

The triple output PS2520G and PS2521G Power Supplies are versatile supplies suitable for many applications. The PS2520G has a single supply providing a maximum of 6 V and 3 A and two supplies providing a maximum of 36 V and 1.5 A. The PS2521G has a single supply providing a maximum of 6 V and 5.0 A and two supplies providing a maximum of 20 V and 2.5 A.

The supplies can be operated in one of three modes: independent, series or parallel. In the independent mode, the output voltage and current of each supply are controlled independently.

In the two tracking modes, the variable outputs are connected either in series or in parallel; the controls of the master power supply adjust the voltage or current of both power supplies.

The PS2520G and PS2521G are GPIB programmable. The GPIB command sets are SCPI compatible. Each power supply features 100 memories to store voltage and current limits for instant recall via the front panel or GPIB. Both have a dual 4-digit LED display.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
PS2520G PS2521G
Number of outputs 3 3
Output voltage 0 to 6 V, 0 to 36 V (two) 0 to 6 V, 0 to 20 V (two)
Output current 0 to 3 A (6 V), 0 to 1.5 A (36 V) 0 to 5 A (6 V), 0 to 2.5 A (20 V)
Voltage accuracy 0.05% 5 mV + 25 mV 0.05% 5 mV + 25 mV
Current accuracy 0.2% + 10 mA 0.2% + 10 mA
Programmable voltage resolution 10 mV 10 mV
Programmable current resolution 1 mA 1 mA
Display Digital, LED Digital, LED
Auto-series/parallel operation Yes Yes
Auto-master/slave tracking Yes Yes
Internal memory Yes, 100 Yes, 100
GPIB (SCPI) Yes Yes
Constant voltage mode Yes Yes
Constant current mode Yes Yes
Variable current limit Yes Yes
Over-voltage protection Yes Yes
Over-current protection Yes Yes
Dual 4-digit panel meter Yes Yes
Safety certifications UL1244, CSA231, EN61010-1 UL1244, CSA231, EN61010-1
EMC Meets Directive 89/336/EEC Meets Directive 89/336/EEC
