Overview

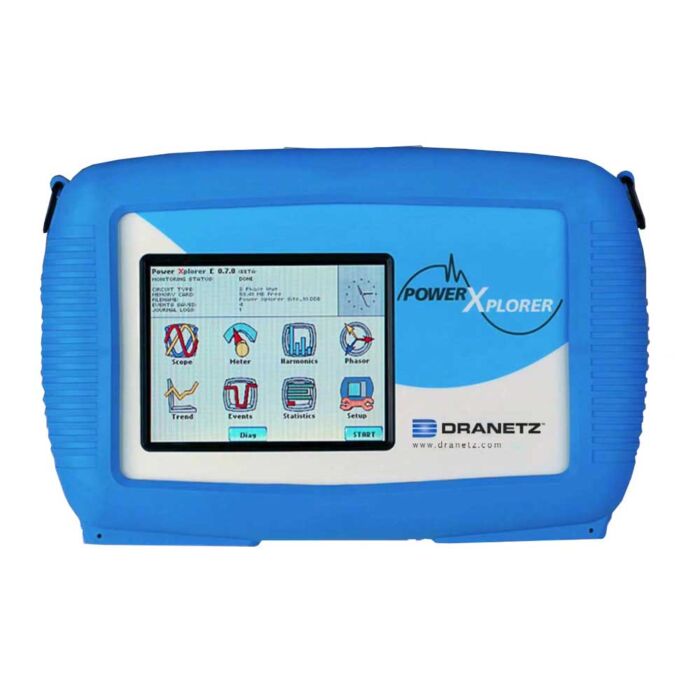

The Dranetz PX5-X-Fast PowerXplorer Power Quality Meter has an eight-channel, portable, hand-held power quality meter/monitor that is built with a color 1/4 VGA touch screen liquid crystal display (LCD). It offers four voltage channels and four current channels that can be monitored, recorded, and displayed concurrently. This device meets multiple testing standards including both IEEE 1159 and IEC 61000-4-30.
Eight channels: 4 voltage & 4 current
Intuitive color touch screen
Light weight - About 4 pounds, 2 kg - with rugged rubber boot
AC/DC applications
Samples at 256 samples/cycle
Independent voltage & current triggering, cross triggering
High-speed sampling and data capture (1 microsecond/channel)
Oscilloscope-like high speed transient detection (Dranetz 658-like and BMI-8800 like)
Detailed event characterization of RMS variations and transients
THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
Captures IEEE 1459 parameters for non-sinusoidal and advanced power systems
Remote communications - RS-232, ethernet or USB
Battery or AC mode
Built in UPS battery with external charger
Expanded memory up to 128 MB
Available languages - English, Spanish, French, German, Italian, Swedish, Finnish, Chinese, Japanese, Korean
Frequency Range
10 mHz resolution, 15-20 Hz, 45-65 Hz or 350-450 Hz
