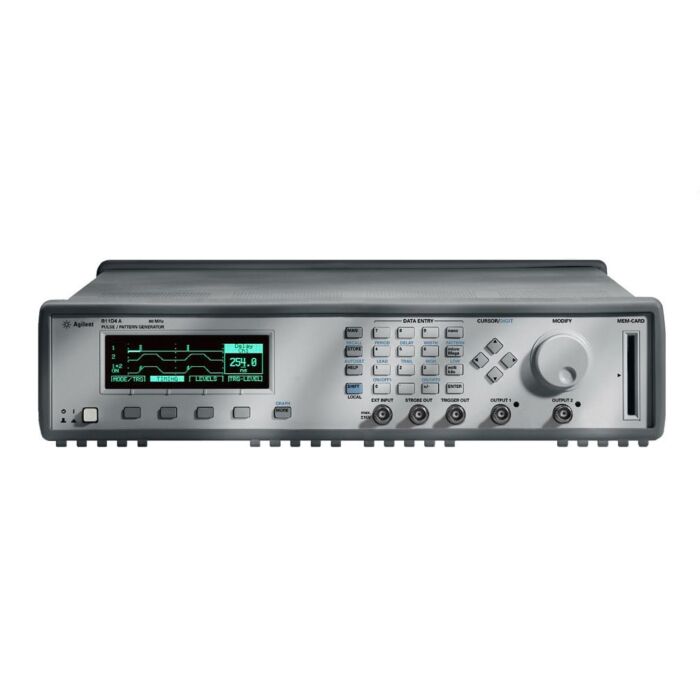

Used Keysight / Agilent 81104A Pulse Pattern Generator, 0.001Hz-80MHz

Product Highlights

The Keysight 81104A 80 MHz Pulse Pattern Generator with one or two Keysight 81105A output modules (single-/dual-channel) builds on the performance of the 81101A and is backward-compatible.

The 81104A extends the frequency range and adds RZ/NRZ pattern capability up to 16 kbit per channel. An NRZ strobe channel provides a trigger at arbitrary points in the pattern, or can be used as an additional pattern source.

Channel-add and 1000 Ohm source modes each operate up to about 60 MHz. Combined, the maximum speed is about 15 MHz.

• Single-/dual-channel pulse pattern generator
• 80 MHz, 10 V from 50 Ohm into 50 Ohm
• Triggerable / PLL operation selectable
• Pulse / burst / pattern modes selectable
• Variable transition times
• BNC outputs, single-ended
• Single- or dual-channel: Requires 1 or 2 output modules 81105A
