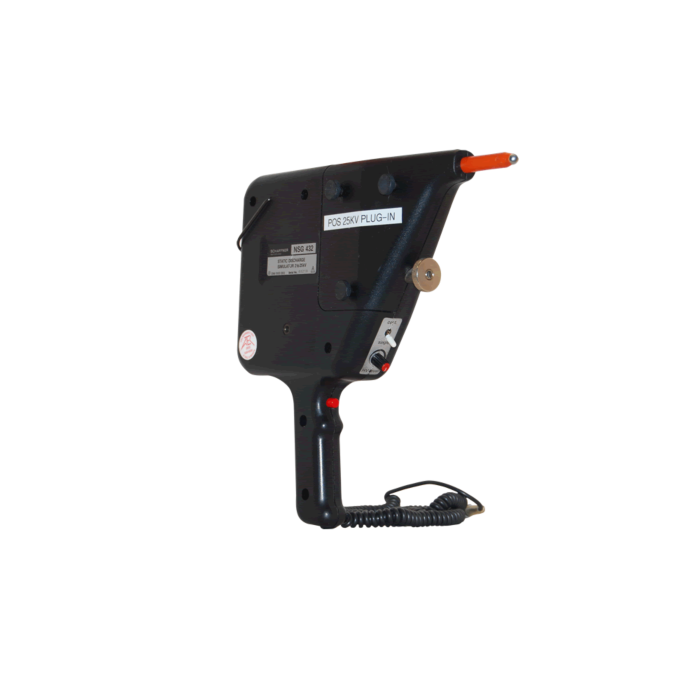

Used Schaffner NSG432 Static Discharge Simulator (ESD) Gun, 25kV

Product Highlights

• Discharge voltage V0: 2 - 25kV
• Polarity: positive/negative (depending on discharge network)
• Discharge capacitor Cs: 150 pF ± 10%
• Discharge resistor Rd: 330 ohms ± 10%
• Operating modes: single/repetitive discharge
• Rise time (air discharge): < 1 ns for voltages < 8 kV
• Rise time (with contact discharge adapter): 0.7 - 1 ns

For very high voltage discharges, such as might be required to meet military specifications or for special applications, the NSG 432 ESD simulator system from Schaffner can be used to generate electrostatic discharges up to 25kV. The NSG 432 is a compact, hand-held instrument, with a range of high voltage discharge networks for testing to various standards, including IEC 61000-4-2.
