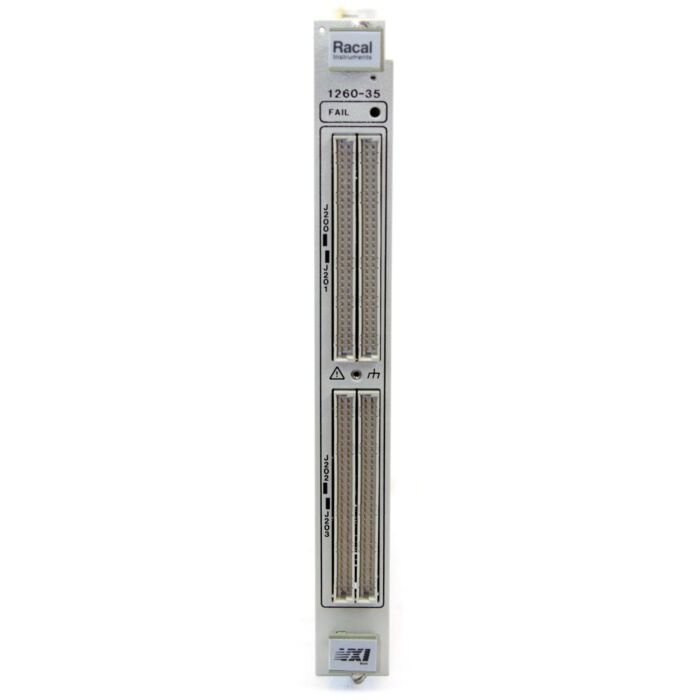

Used Racal 1260-35A 1 X 96 Signal Multiplexer/Scanner, User Connectable: Crimp 1 X 96

Product Highlights

The Racal Instruments™ 1260-35 is a high-density scanner or multiplexer, ideal for applications with large switch requirements such as continuity testing, and audio or telephone line switching.

The 1260-35 can be user-configured in many ways, from a 1x96 two-wire to sixteen 1x6 two-wire multiplexers, switching up to 250 VDC and 1A per channel. An additional relay that selects between the high and low sides of the two-wire mode allows the 1260-35 to act as a 1x192 1-wire scanner.

Relay coil current monitoring is available to provide confidence checking, which gives the user assurance of proper relay operation.

The 1260-35A is supplied with crimp pin type user connectors, and the 1260-35 with ribbon cable type mating connectors.

• User Configurable to a Variety of Combinations
• 50 MHz Bandwidth
• Low Thermal Offset
• Relay Coil Current Monitoring Available
• C-Size VXIbus Module
