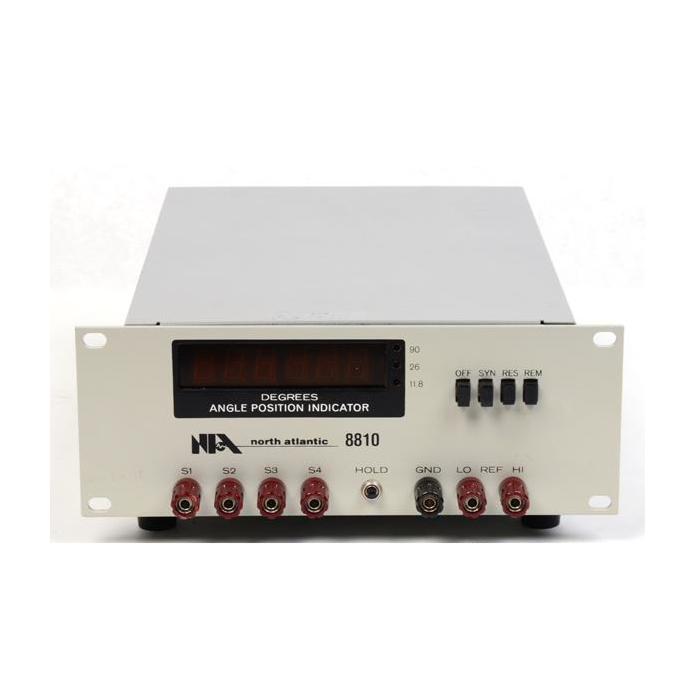

Used North Atlantic 8810 Angle Position Indicator

Product Highlights

• Phase Sensitive Detection
• Auto Line-to-Line Select
• Autophase Correction
• Up to 10 kHz Frequency Range

The North Atlantic 8810 Angle Position Indicator is an extension of the instruments product line using the exclusive LSI TRIG-LOGIC processor. The 8810 is a full-tracking type II servo, which follows synchros or resolvers to speeds of 1000°/second without velocity errors. It accepts any standard line-to-line level without preselecting or preprogramming the input signals. The converted synchro or resolver data is presented in three forms:

• Front-panel display using planar gas discharge information displays
• BCD outputs on the rear panel connector
• Optional IEEE Interface
