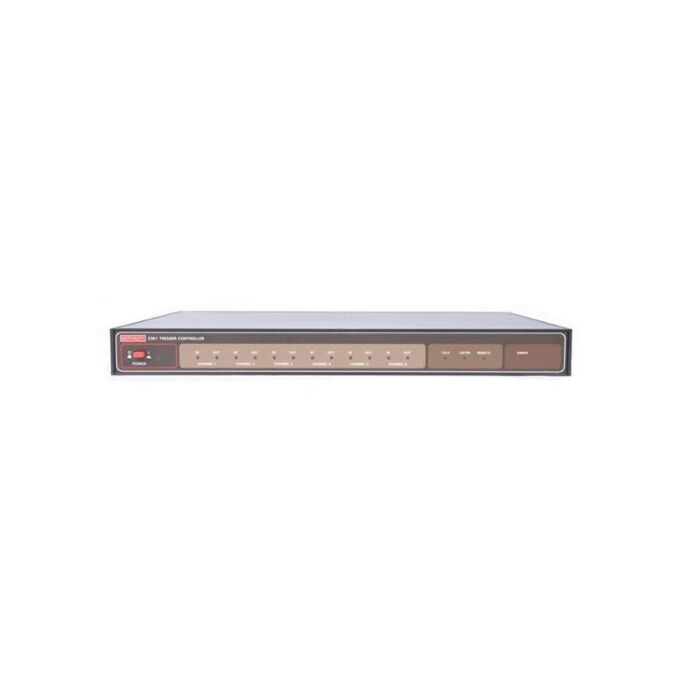

Used Keithley 2361 Trigger Controller

Product Highlights

Features:

• Provides control of Trigger Pulses among up to six Instruments
• Includes 8-Bit Digital I/O Port
• Synchronizes triggers from different instruments in a measurement system
• Provides the Flexibility to Control Instrument Operation in a variety of ways
• Non-volatile Storage of up to 3 Trigger I/O Programs

The Model 2361 is a GPIB-based trigger control unit (TCU) with enough independent inputs and outputs to control up to six instruments. It has six outputs and six inputs, all accessed through BNC connectors. The Model 2361 also has an extra digital I/O port with eight inputs and eight outputs for controlling other devices in the test system, in addition to instrument triggering.
