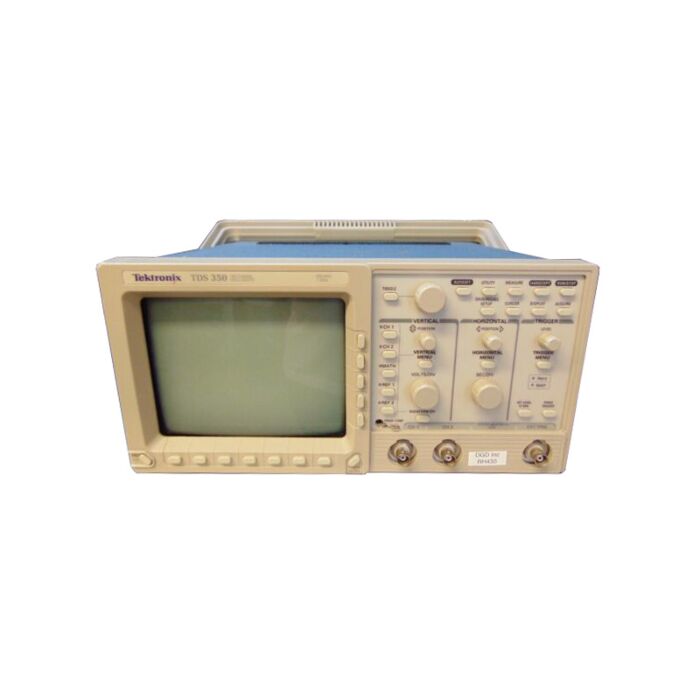

Used Tektronix TDS350 200 MHz, 2 Channel Digital Oscilloscope, 1GSa/s
Order #
TDS350-USED
|
Mfg #
TDS350
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Overview
Tektronix TDS350 Highlights
- Bandwidth: 200 MHz
- Sample Rate: 1 GS/s on each channel
- Channels: two identical channels, each with invert function
- Sensitivity: 2 mV to 10 V/div
- Vertical Resolution: 8 bits (256 levels over 10.24 vertical divisions)
- Time Base System (Main and Delayed)
- Time/Division Range: 2.5 ns - 5 s/div
- Record Length: 1000 sample points per channel
- Triggering System (Main Only)
- Triggering Types: Edge, Video Automatic Measurements
- Option 14 (I/O Interface): Computer Interface and Hardcopy Capability
- GPIB (IEEE-488.2) Programmability
- RS-232 Interface Programmability
- Video Output
- Hardcopy Port - Centronics-type parallel or RS-232
- Graphics Interface File Formats - Interleaf (.img), TIFF, PCX (PC Paintbrush), BMP (Microsoft Windows), and Encapsulated Postscript (EPS)
- Printer Formats - ThinkJet, DeskJet, LaserJet, Epson (9 & 24 Pin), Seiko DPU 411/II, DPU 412 DC power provided for Seiko printers
- 8-Bit Vertical resolution, 2mV/div to 10V/div, 1K Record length, 2% Vertical accuracy, 10ns Peak Detect Mode. Option 14: GPIB, RS-232 and Centronics Parallel Interfaces, 3P: Printer Pack
