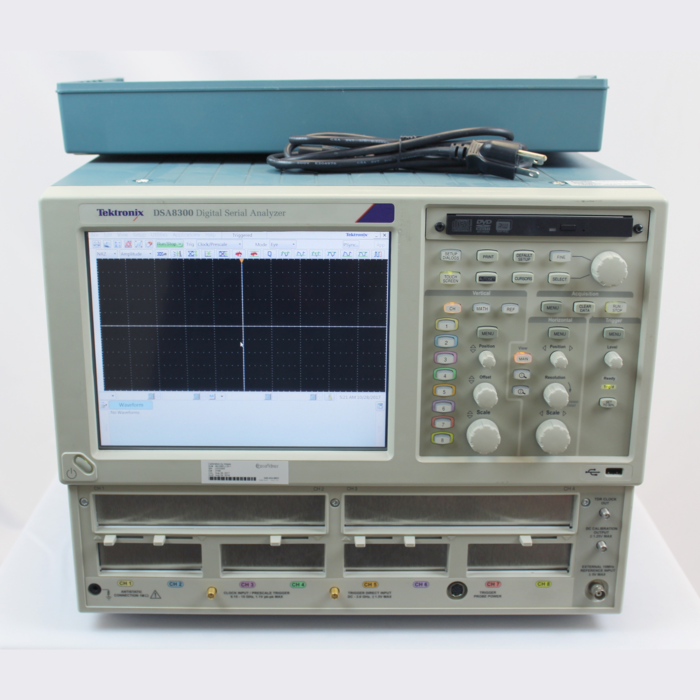

Used Tektronix DSA8300 Digital Sampling Analyser Oscilloscope, 8 Channel
Digital Sampling Analyser Oscilloscope, 8 Channel
Order #: DSA8300-USED
Mfg #: DSA8300
$39,999.00
Used Tektronix DSA8300 Digital Sampling Analyser Oscilloscope, 8 Channel
Digital Sampling Analyser Oscilloscope, 8 Channel
Order #: DSA8300-USED
Mfg #: DSA8300
$39,999.00
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Ships in 1-2 weeks
With intrinsic jitter of less than 100 femtoseconds for extremely accurate device characterization, the DSA8300 Series provides comprehensive support for Optical Communications Standards, Time Domain Reflectometry and S-parameters. The DSA8300 Digital Sampling Oscilloscope is a complete high-speed PHY Layer testing platform for data communications from 155 Mb/sec to 400G PAM4.
Product Highlights
- Optical modules
- Optical modules that support optical data rates from 155 Mb/s to 10 Gb/s to 40 Gb/s to 100 Gb/s to PAM4 for 50G/100G/200G/400G
- Optical reference receivers (ORR) 1 support specified requirements for standards-mandated compliance testing beyond 56 GBd (PAM4 and PAM2 NRZ)(80C10C)
- High optical sensitivity, low noise, and wide dynamic range of the optical sampling modules allows accurate testing and characterization of short-reach to long-haul optical communications standards
- Fully calibrated clock recovery solutions – no need to manually calibrate for data pick-off losses
- Calibrated extinction ratio measurements and variable correction ER measurement ensure accuracy and repeatability
- Electrical modules
- Very low-noise electrical samplers (280 μV at 20 GHz, 450 μV at 60 GHz, typical)
- Selectable bandwidths 2 allow the user to trade-off sampler bandwidth and noise for optimal data acquisition performance
- Remote samplers 3 or compact sampling extender module cables minimize signal degradation by allowing the sampler to be located in close proximity to the device under test
- High-performance integrated TDR (10 ps typical step rise time) supports exceptional impedance discontinuity characterization and high dynamic range for S-parameter measurements to 50 GHz
- Analysis
- Jitter, noise, and BER analysis of high-speed PAM4 and PAM2 NRZ serial data rates from
- Analysis of PAM4 signals with comprehensive jitter, noise and BER analysis for each individual PAM eye, and a set of global measurements that assess the overall PAM4 signal attributes
- 100G-SR4/Transmitter and Dispersion Eye Closure (TDEC) automation provides turn-key testing and debug of TX Optical properties key to the SR4 Short Reach Ethernet
- 80STDEC streamlines high performance Transmitter and Dispersion Eye Closure (TDEC) measurement making it ideal for manufacturing and conformance validation applications
- Automated mask testing with over 80 industry-standard masks. New masks can be imported into the DSA8300 to support new emerging standards. Users can define their own masks for automated mask testing
- Jitter, noise, BER, mask testing, and Serial Data Link Analysis (SDLA) are provided through the 80SJNB Essentials and Advanced Software Application Options
- Advanced TDR analysis, S-parameter measurements, simulation model extraction, and serial link simulation capabilities are provided by the IConnect® Software Application options
- High test throughput
- High sample acquisition rate up to 200 kS/s per channel
- Efficient programmatic interface (IEEE-488, Ethernet, or local processor access) enables high test throughput
