Quadtech GUARDIAN 6100 PLUS FOR SALE
AC/DC/IR/GC Safety Analyzer HiPot,.05-5KVAC,.05-6KVDC,1-30A

Order #: GUARDIAN 6100 PLUS-USED

Mfg #: GUARDIAN 6100 PLUS

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,999.00

Quadtech GUARDIAN 6100 PLUS FOR SALE

AC/DC/IR/GC Safety Analyzer HiPot,.05-5KVAC,.05-6KVDC,1-30A

Order #: GUARDIAN 6100 PLUS-USED

Mfg #: GUARDIAN 6100 PLUS

$5,999.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability:
In stock

Product Highlights

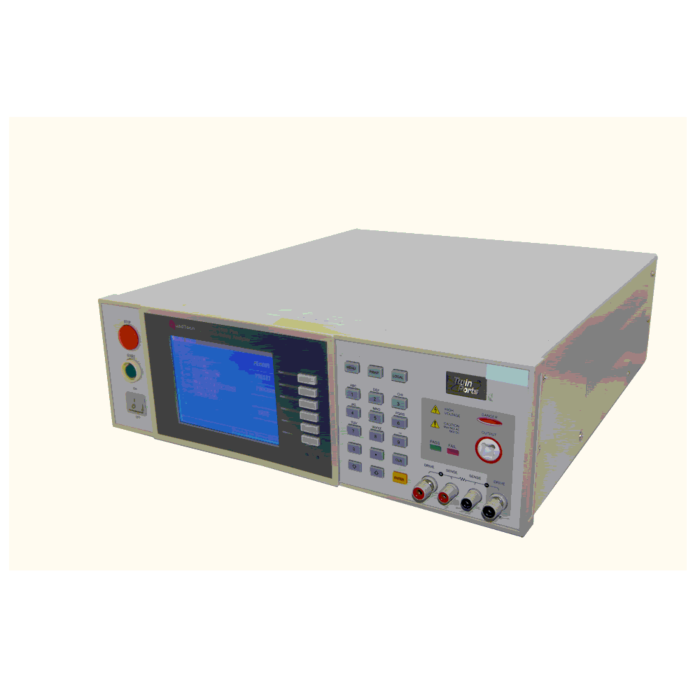

The Quadtech Guardian 6100 Plus is the industry's first production safety analyzer with simultaneous Hipot and Ground Bond capability providing a dramatic savings in test time. Six instruments in one, the Guardian 6100 Plus provides AC Hipot, DC Hipot, Insulation Resistance, Leakage Current / Functional Run, Ground Bond and Open / Short measurements from a single test connection. Versatile and packed with features, the Guardian 6100 Plus is a cost effective solution for the full spectrum of electrical safety compliance testing.

  • Twin Port - Simultaneous Hipot & GB
  • Built-in 20A Hipot/Line Leakage Scanner
  • Output Voltage to 5 kV AC and 6kV DC
  • Ground Bond Testing to 30A AC (to 40A with Optional Transformer)
  • Insulation Resistance Measurements from 100 kohms to 50 Gohms
  • Earth, Enclosure & Patient Line Leakage Current Measurements to 9.999 mA
  • Open/Short Circuit Detection Mode
  • Pause Mode with Message Capability
  • Continuous Leakage Current Monitoring
  • Programmable Trip Current to 40 mA AC and 12 mA DC
  • Programmable Ramp, Dwell & Test Times
  • Storage of 100 Test Setups, 50 Steps Each
  • Front Panel Lockout via Password
  • Standard RS-232 & Remote I/O Interfaces
  • Optional IEEE-488, Printer Interfaces
  • Optional CaptivATE Automation Software for Guardian 6100 Plus
