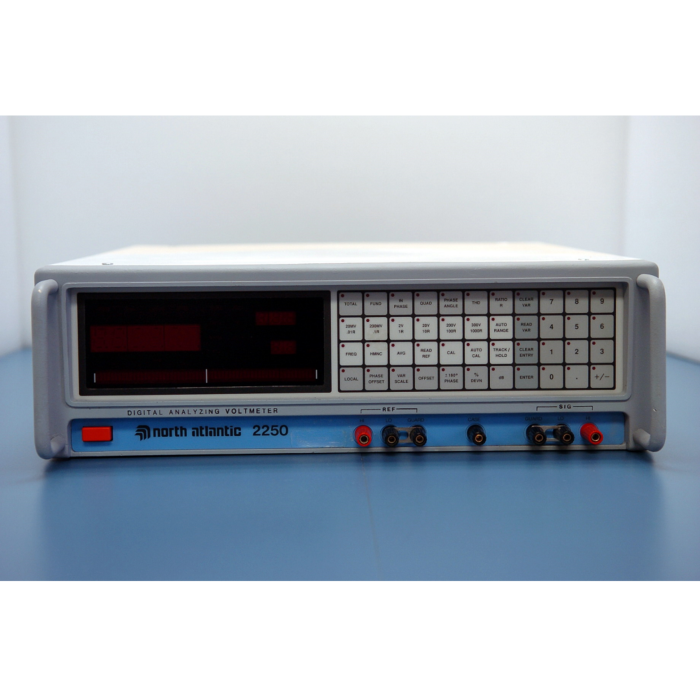

North Atlantic 2250 - Used for Sale
Analyzing Voltmeter

Order #: 2250-USED

Mfg #: 2250

Questions about availability or need help? Contact Us:

(800) 633-0561
$7,699.00

North Atlantic 2250 - Used for Sale

Analyzing Voltmeter

Order #: 2250-USED

Mfg #: 2250

$7,699.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability

Product Highlights

  • Voltage ranges are from: 20mV to 500V full scale in 6 ranges
  • Phase angle measurement from: +0.0° to +359.99° phase lead with a 0.01° resolution
  • High accuracy
  • Half the size and weight of existing designs
  • High resolution touch-screen
  • Up to 80 dB harmonic rejection
  • Fast settling time, fully programmable
  • Ethernet, USB, & IEEE-488 ports
  • LVDT/RVDT measurement capability
  • Independent front and rear panel connections

Applications:

  • Automatic test equipment (ATE)
  • Transformer ratio & phase tests
  • Amplifier gain & phase
  • Phase-sensitive null detection
  • Network transfer function analysis
  • Input/output impedance testing
  • Wide-band, high sensitivity voltage measurements
  • Attenuator linearity testing
  • Harmonic analysis
  • Accelerometer testing
  • Phase angle measurements
  • Synchro/Resolver transducer testing
  • LVDT/RVDT testing
  • Filter testing: Insertion loss, Phase shift measurement of power factors,  Complex impedance phasing of servo motors & servos

The North Atlantic 2250 Phase Angle Voltmeter employs a  16-bit microprocessor-based design using Fast-Fourier Transform techniques that combine many of the capabilities of today’s network/waveform analyzers in a digital analyzing voltmeter configuration.

Designed for the Synchro/Resolver and LVDT/RVDT marketplace, this instrument accurately makes measurements of phase angle, in-phase, quadrature, fundamental, and total, as well as impedance, power, and harmonics. Isolated inputs allow null, ratio, and gain measurements of key parameters. A reference phase offset facilitates bridging measurements. A sensitive null meter is included for precise nulling. The 2250 is ideally suited for defense, industrial, and commercial applications.
